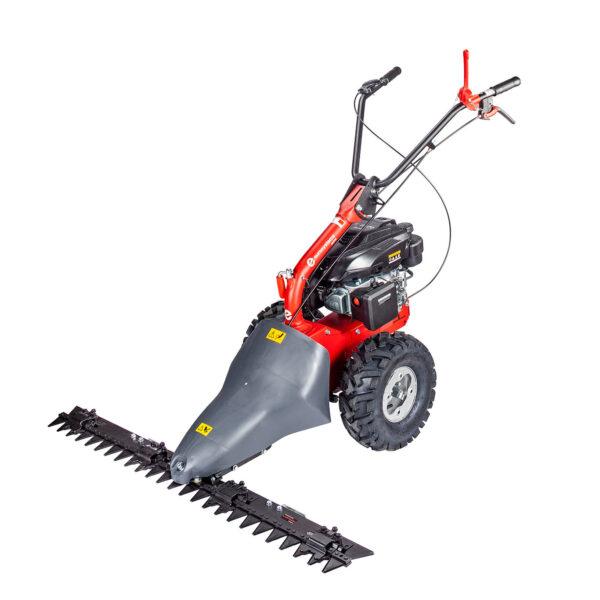

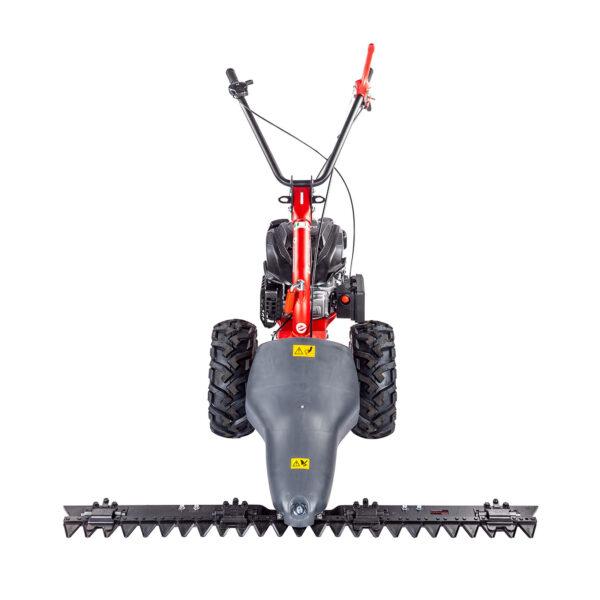

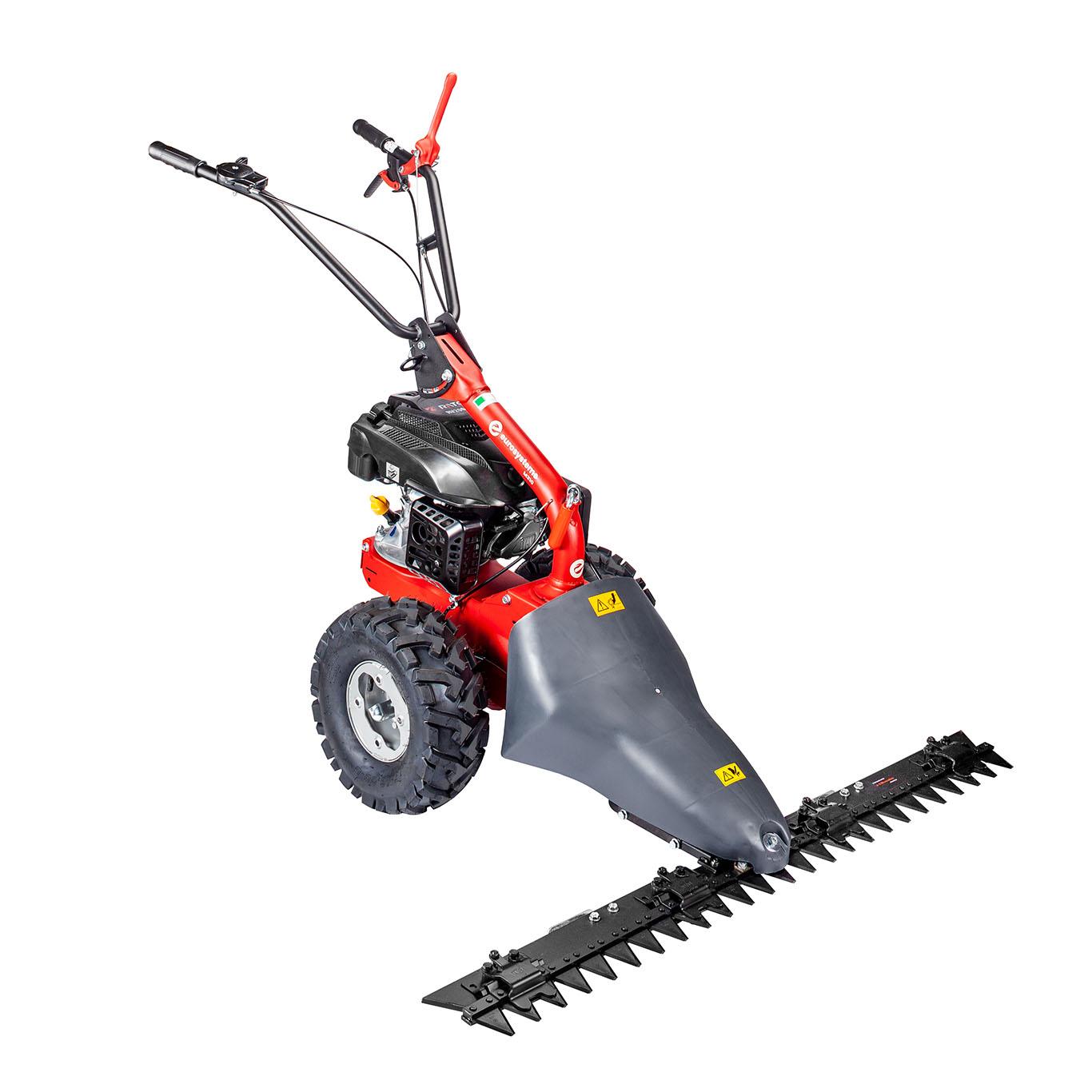

M310
More powerful, bigger and higher performance: M310 is the latest semi-professional mower designed and built by Eurosystems.
The 127 cm cutting bar makes it possible to work on larger stretches of land; the two-blade movement, where both the upper and lower blades oscillate, allows for a clean cut and ensures the rapid regrowth of the grass to be mowed.
Equipped with 5×6.00-6” tyres with mechanical semi-differential, the M310 is marketed with powerful engines that allow for easy, continuous and high-performance use.
Cutting movement: bilama
2 engines models
Recommended use: up to 10.000 sqm
- Technical features
- Engines
- Optionals
- Manuals
Technical features
| Trasmission |
endless screw in oil bath and belt |
|---|---|
| Gear-speed |
MA, single forward gear |
| Speeds |
FS: 3,0 Km/h |
| Handlebar |
adjustable in height and by side |
| Driving levers |
ergonomic with built-in safety system |
| Tool |
cutter bar |
| Movement |
double blade |
| Cutting |
working height 3 cm |
| Other |
sheet metal skids, floating grass deflector |
| Driving wheels |
tyres, tractor profile 15×6.00-6" |
| Weight |
65-69 kg |
| Dimensions |
131x159x90(h) cm |
Engines
 |

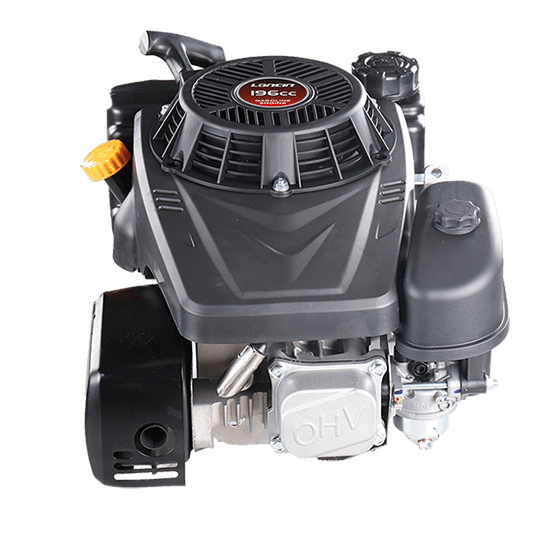

EURO 196 OHVPower supply: gasoline Starting systems: recoil Displacement: 196 cc Power: 3.8 kw Fuel tank: 0.9 liters |
 |
EURO RV200Power supply: gasoline Starting systems: recoil Displacement: 200 cc Power: 3,5 kw Tank: 1 liter |
Optionals
 |

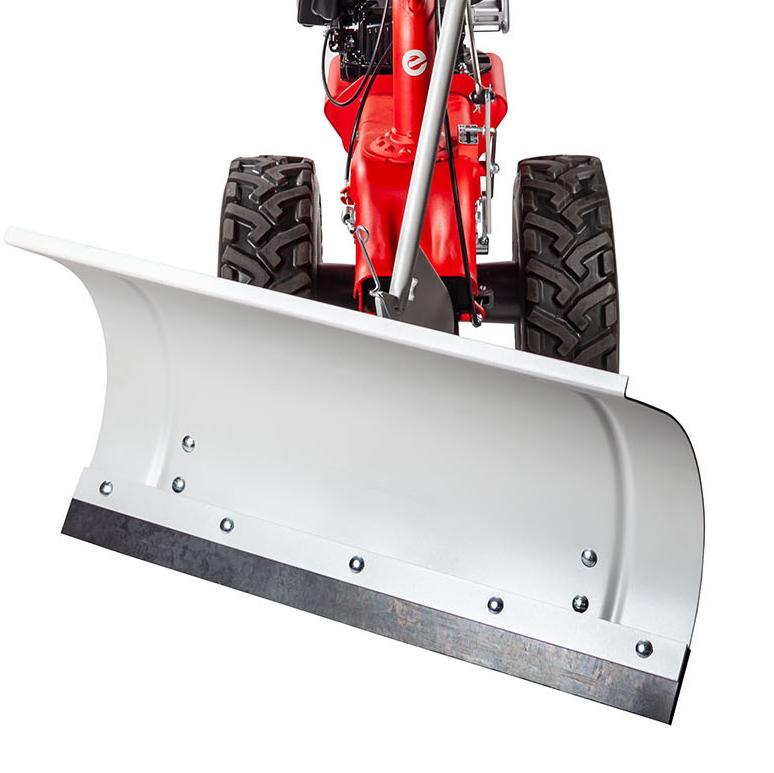

SNOW BLADEOperation: front blade with quick coupling Frame: in sheet metal Working width: 85 cm Adjustments: lateral ± 30 ° Net weight: 18 Kg Dimensions: 85x93x96 (h) cm |
 |

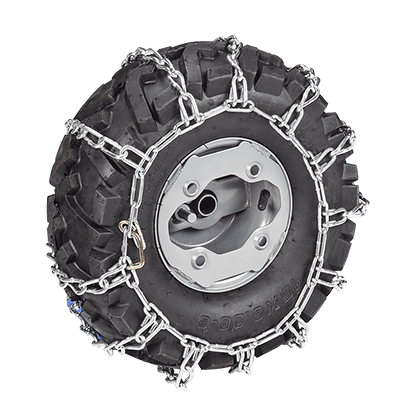

SNOW CHAINSDescription: Iron snow chains for tractor wheels 15×6,00-6″ |
Manuals
- Spare parts list M310 – (latest version 2025)
- Operating instructions M310 – (latest version 2025)
