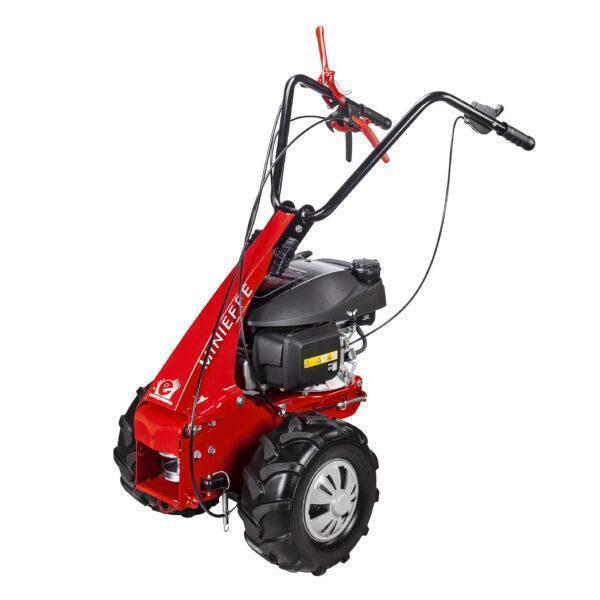

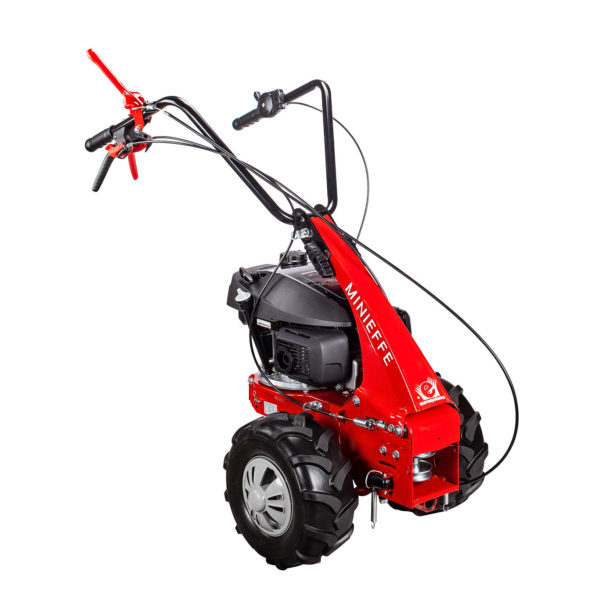

MINIEFFE
Compact, extremely maneuvrable, suitable for low-intensity works, Minieffe is the entry-level model of our Multi-Tool range that well fits the needs of the user with low experience or who need to work on small surfaces. Ideal for cleaning uncultivated areas, mowing grass (haymaking) and cleaning outdoor floors.
– 7 working tools
– 6 engines available
– recommended use: hobby
DOWNLOAD
TECHNICAL SHEET- Technical features
- Engines
- Tools
- Optionals
- MANUALS
Technical features
| Trasmission |
endless screw in oil bath and belt |
|---|---|
| Gear-speed |
to be selected:FS forward speedFS + R, forward speed and reverse |
| Speeds |
FS: 2,5 Km/hR (if selected): 3,3 Km/h |
| Handlebar |
adjustable in height, not reversible |
| Driving levers |
ergonomic with built-in safety system |
| Power take off |
vertical with belt; connection system semi-rapid |
| Tools |
7 |
| Driving wheels |
TractorFS: 13×5,00-6"FS + RS: 13×6,00-6" + rims |
| Weight |
45 Kg |
| Dimensions |
65x105x100(h) cm |
Engines
|
|
B&S 450 E-SERIESPower supply: gasoline Starting systems: recoil Displacement: 125 cc Power: 1.8 kw Fuel tank: 0.8 liters |
 |
B&S 625 EXI-SERIESPower supply: gasoline Starting systems: recoil Displacement: 150 cc Power: 2.27 kw Fuel tank: 0.8 liters |
 |
B&S 675 iSi SERIESPower supply: gasoline Starting systems: electric Displacement: 163 cc Power: 2.74 kw Fuel tank: 1.0 liters |
 |
HONDA GCV170Power supply: gasoline Starting systems: recoil Displacement: 166 cc Power: 3.6 kw Tank: 0,9 liters |
 |
EURO 196 OHVPower supply: gasoline Starting systems: recoil Displacement: 196 cc Power: 3.8 kw Tank: 0,9 liters |
 |
EURO RV200Power supply: gasoline Starting systems: recoil Displacement: 200 cc Power: 3,5 kw Tank: 1 liter |
Attrezzi

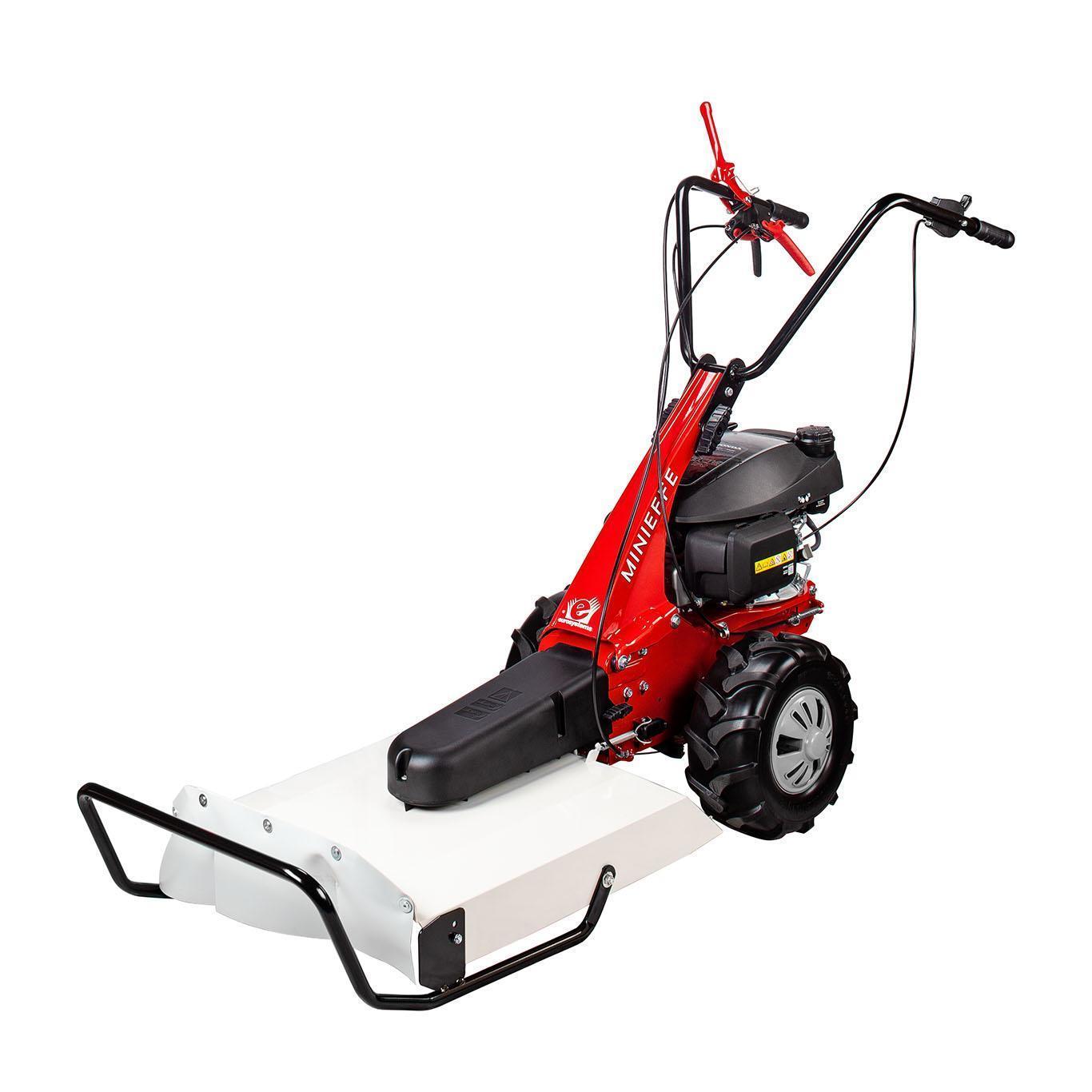

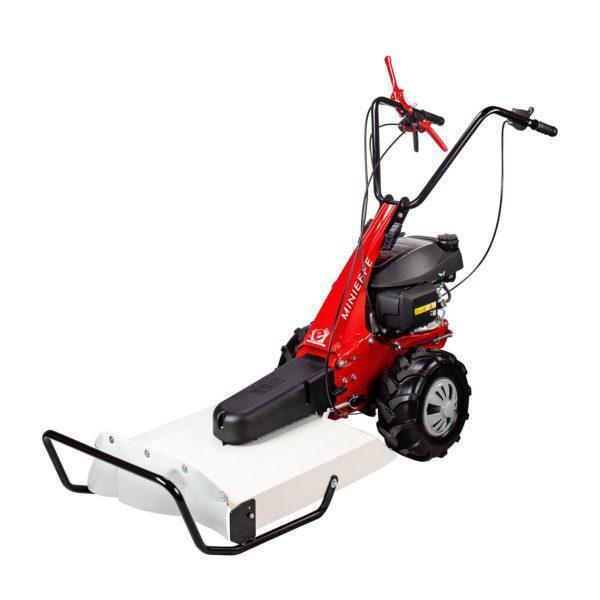

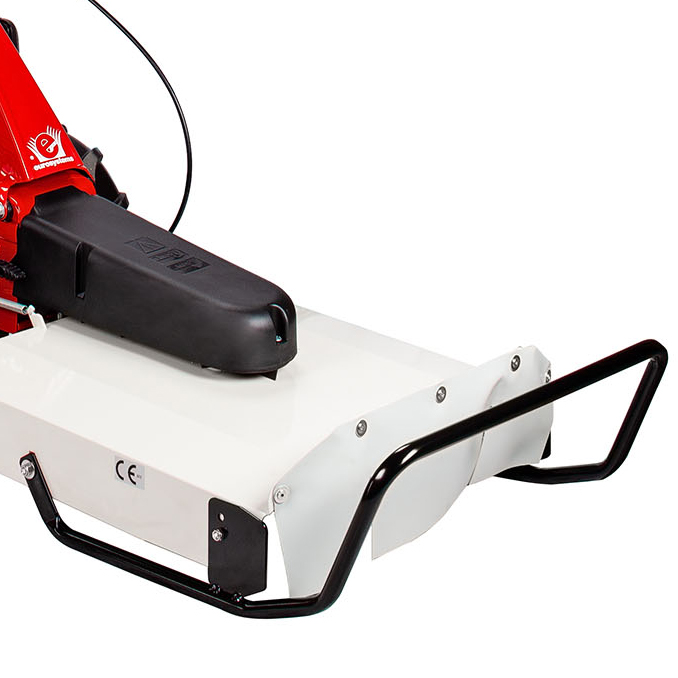

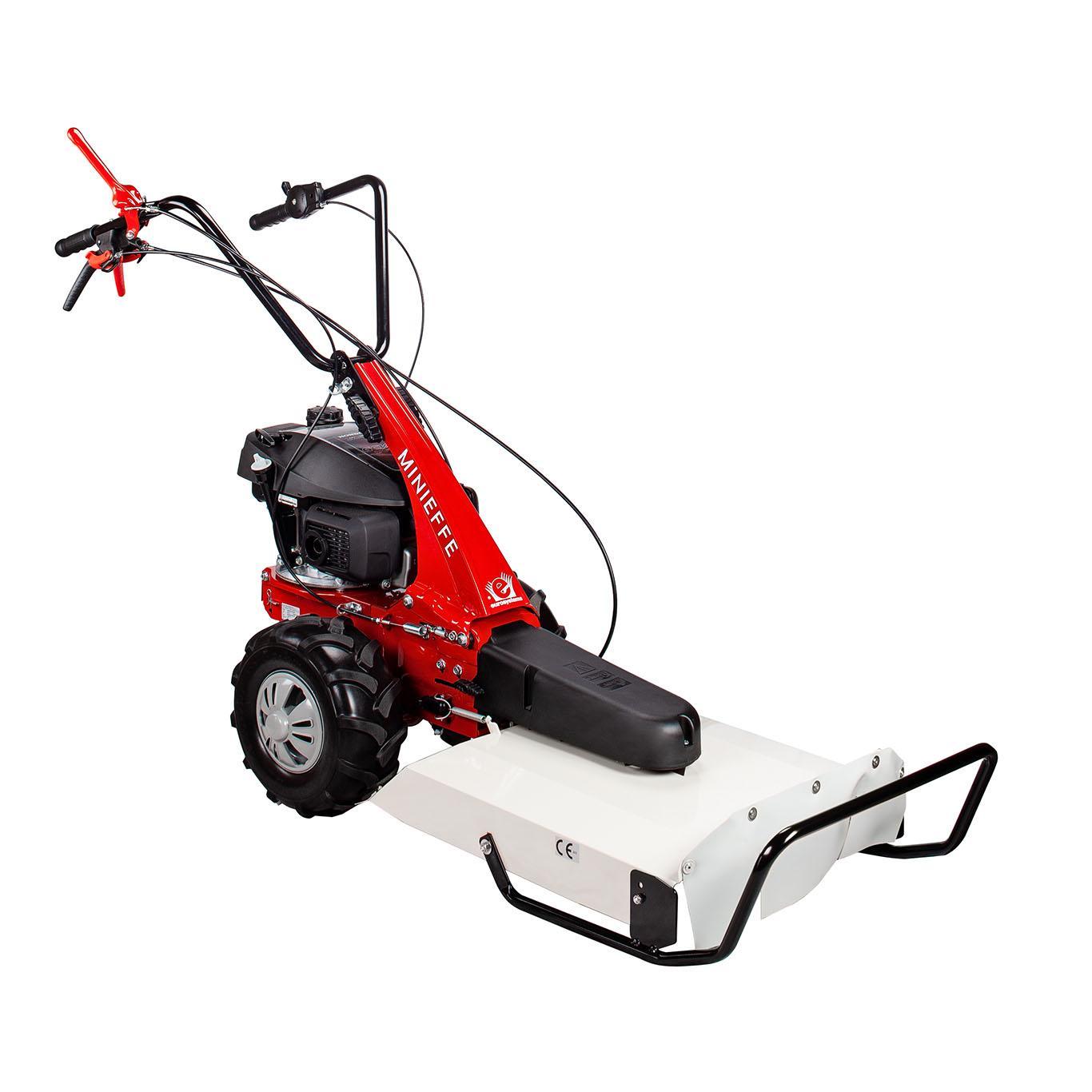

Working tool suitable for cleaning uncultivated areas or small wooded terrains, the grassland mower Minieffe is simple and robust, it allows to manage brambles, small shrubs and grass tall up to 60-80 cm.
Its 53 cm working width allows to manage areas up to 2.500 sqm.
Vertical axle, steel-made single blade with double cutting edge Working width 53 cm
Sheet metal side adjustable skids with front shockproof and protecting curtain. Through the lateral skids the cutting height can be adjusted to 5, 8 or 10,5 cm.
| Operation: | single rotor, single blade
*not suitable with engine B&S450 |
| Frame : | sheet metal |
| Working width : | 53 cm |
| Adjustments: | height adjustable 5, 8 and 10,5 cm, fix positions |
| RPM: | 2200-2300 |
| Transport wheels: | – |
| Other: | sheet metal side skids front security curtain |
| Recommended use: | up to 2.500 sqm |
| Net weight: | 22 Kg |
| Dimensions : | 61,5x95x35(h) cm |
The PRO mower has two additional features: a rotor with four floating knives installed, on the ends of the cutting bar; and the an all-new cutting height adjustment system located on the handlebar.
The first feature allows you to work with even more efficiency, easily tackling tall grass, thick brambles, along with wild grasses and scrub.
The second feature is useful for when you need to quickly change the height-of-cut – perhaps to meet the needs of different mowing conditions or terrain. (to avoid the damage of the blade and the turf)
| Operation: | rotor with four floating knives
*not suitable with engine B&S450 |
| Frame : | sheet metal |
| Working width : | 53 cm |
| Adjustments: | height adjustable 5, 8 and 10,5 cm |
| RPM: | 2200-2300 |
| Transport wheels: | – |
| Other: | cutting height adjustment system on the handlebar front security curtain |
| Recommended use: | up to 2.500 sqm |
| Net weight: | 23,5 Kg |
| Dimensions : | 96×61,5×35(h) cm |
It features the same floating knife cutting system as the PRO but, in place of skid slides, offers two pivoting front wheels with an independent locking system.
This solution is extremely useful when there is a requirement for both wild areas management along with a more formal lawn being maintained. The wheel locking system is useful for safer and more controllable working on sloping terrain.
| Operation: | rotor with four floating knives
*not suitable with engine B&S450 |
| Frame : | sheet metal |
| Working width : | 53 cm |
| Adjustments: | height adjustable 5, 8 and 10,5 cm |
| RPM: | 2200-2300 |
| Transport wheels: | – |
| Other: | cutting height adjustment system on the handlebar sliding on pivoting front wheels |
| Recommended use: | up to 2.500 sqm |
| Net weight: | 23,5 Kg |
| Dimensions : | 96×61,5×35(h) cm |

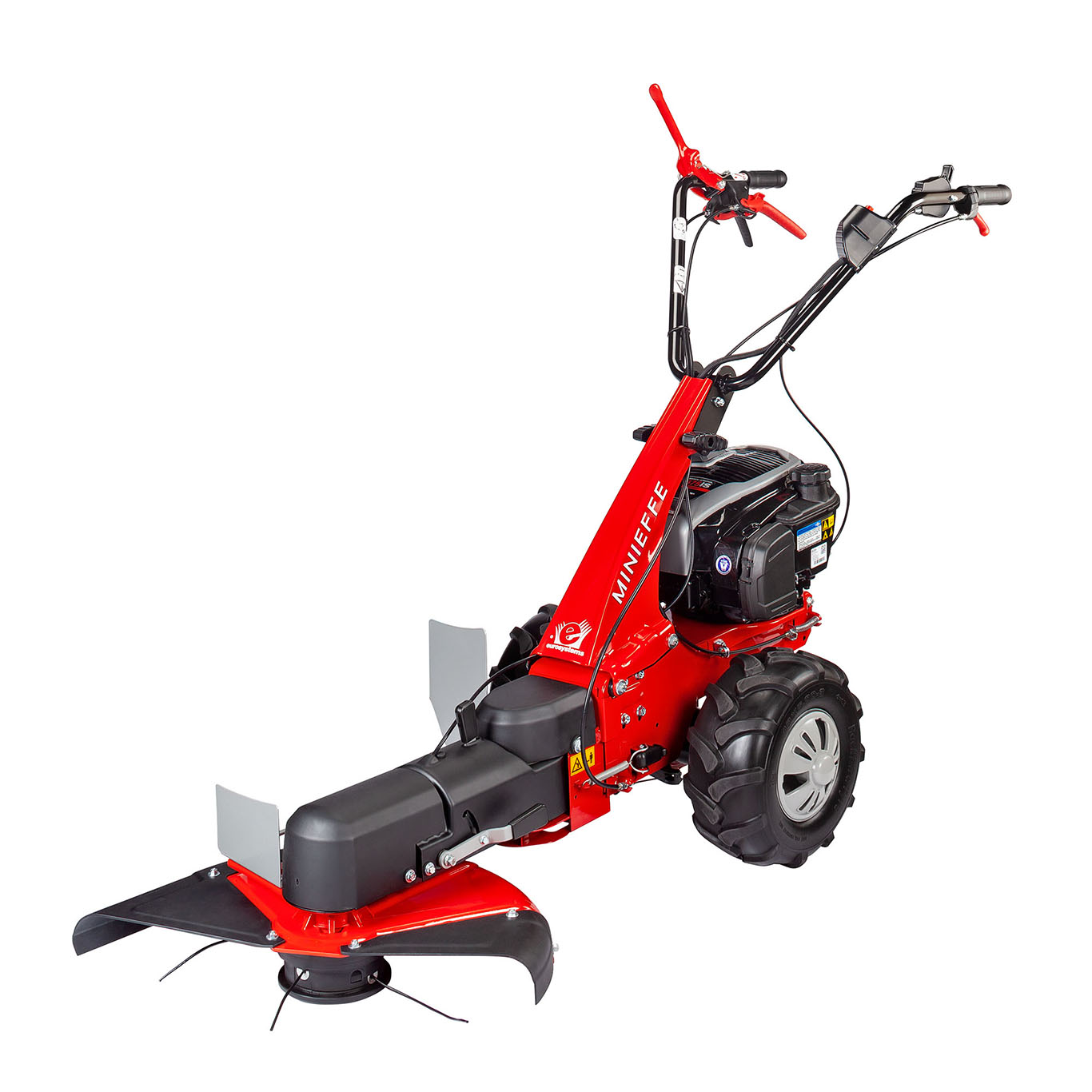

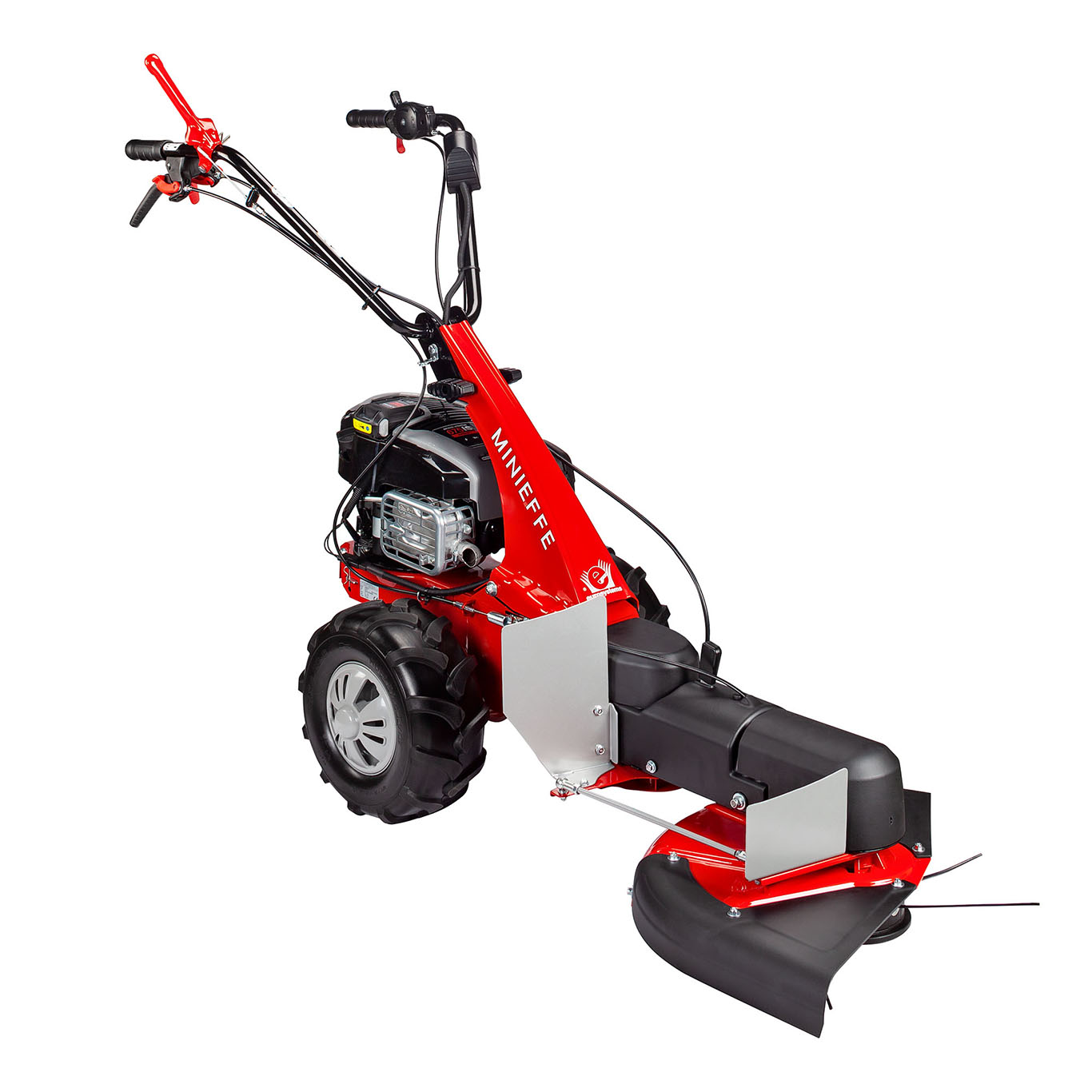

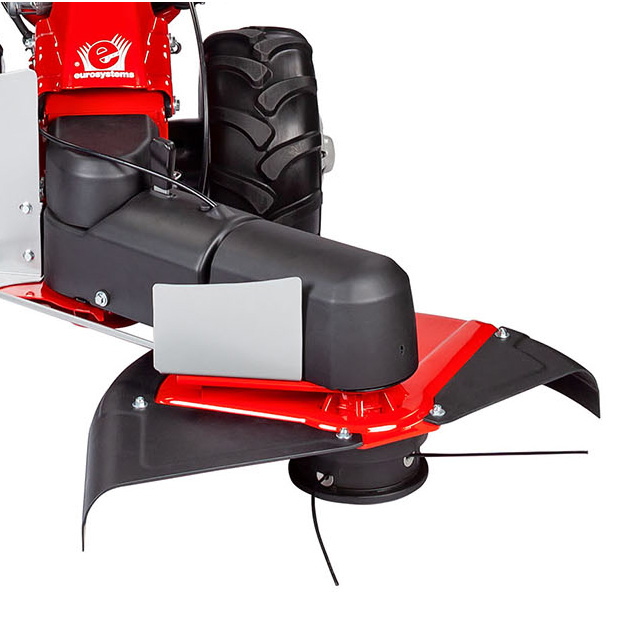

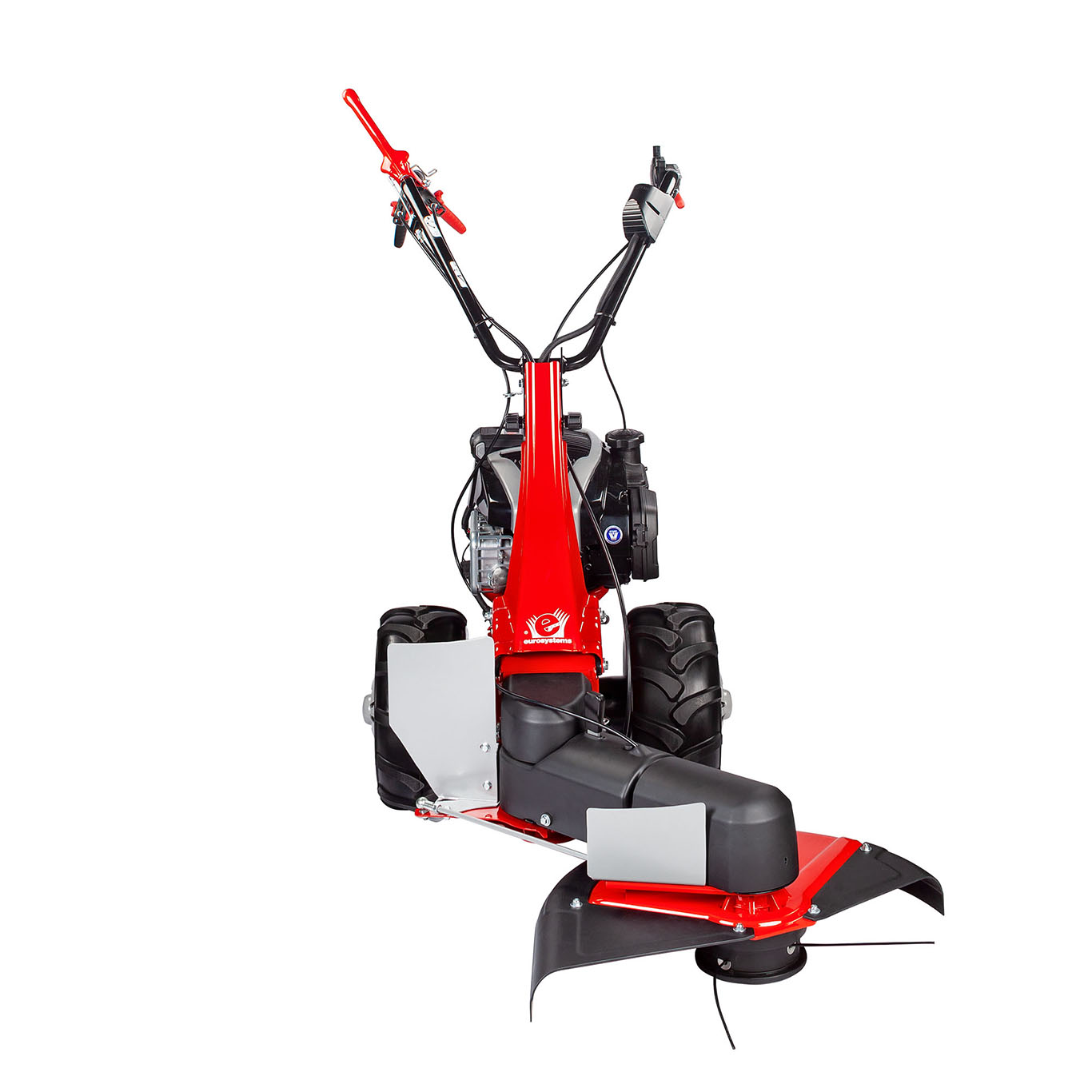

Extremely versatile equipment for grass cutting in every context and for edges, flower beds and sidewalks trimming.
The patented transmission allows the lateral movement of the utensil arm in 4 positions, while the cutting platform can be rotated of 6 degrees. This allows to perfectly clean every corner.
The exclusive and patented wire extension control, placed directly on the handlebar, contributes to make the work quick and convenient.
| Operation: | self-winding cutting head flush
*not suitable with engine B&S450 |
| Tools: | Ø3mm wire, wire capacity in the seat about 7,5 meters |
| Working width : | 60 cm |
| Cutting height: | 20 and 40 mm |
| Adjustments: | lateral inclination of the plate in two positions: 0° and 6°
Cutting arm inclination in 4 positions: 0°, 15°, 30° and 45° |
| Transport wheels: | – |
| Other: | manual handlebar control for extending the head thread
coppa controtestina d’appoggio con cuscinetto a rotazione folle Sheet-metal protective bulkheads Wire-cutter knife |
| Net weight: | 20 Kg |
| Dimensions : | 88x62x41(h) cm |

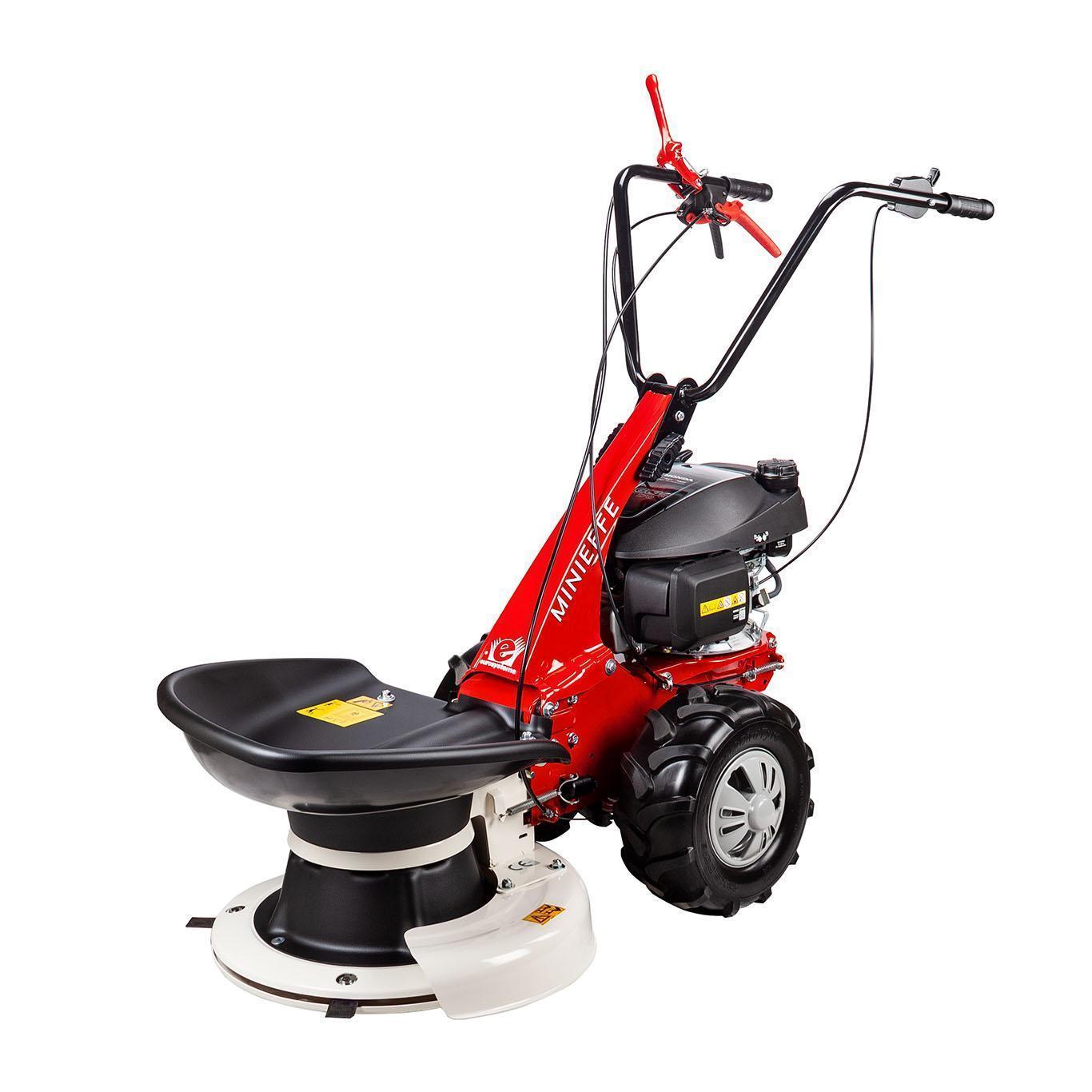

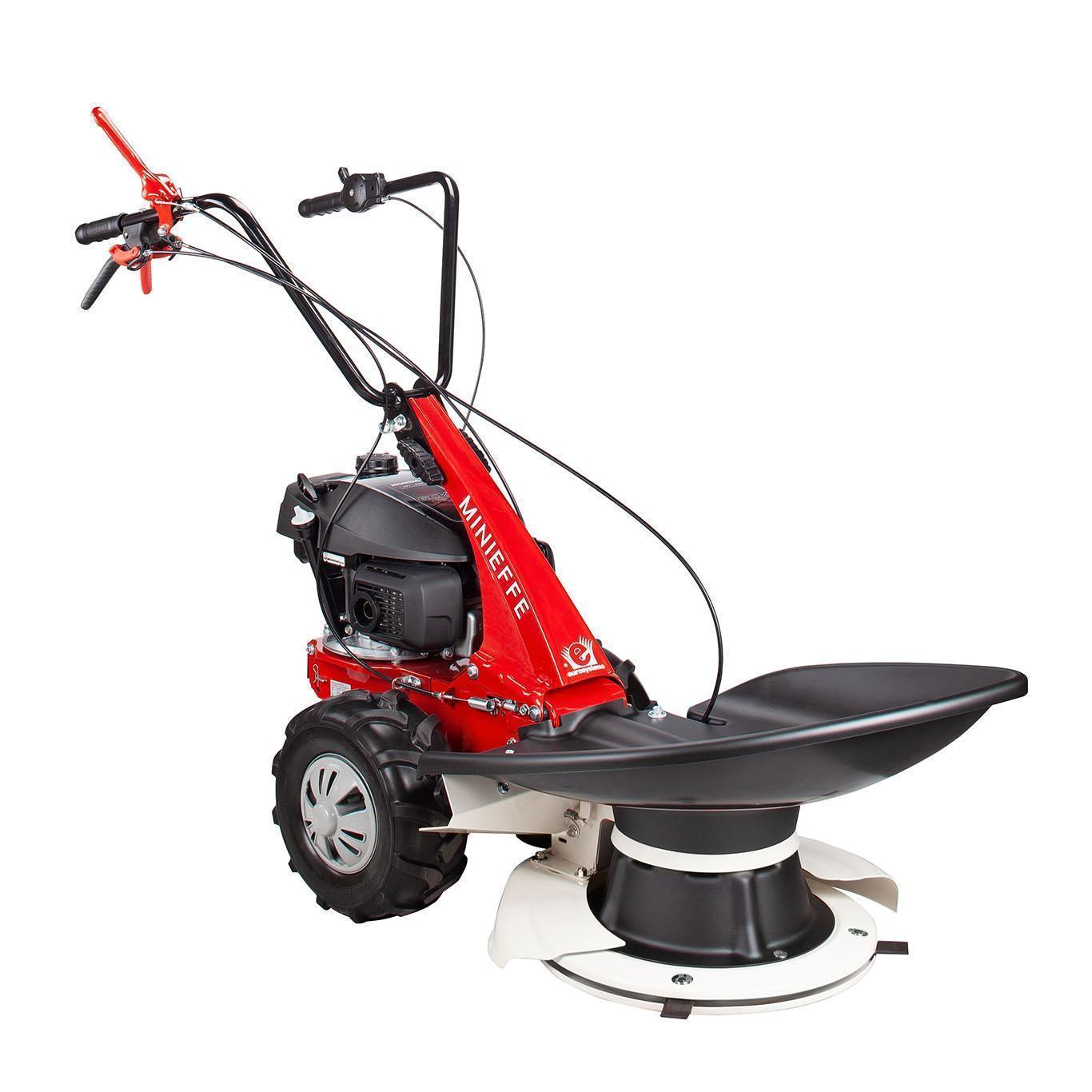

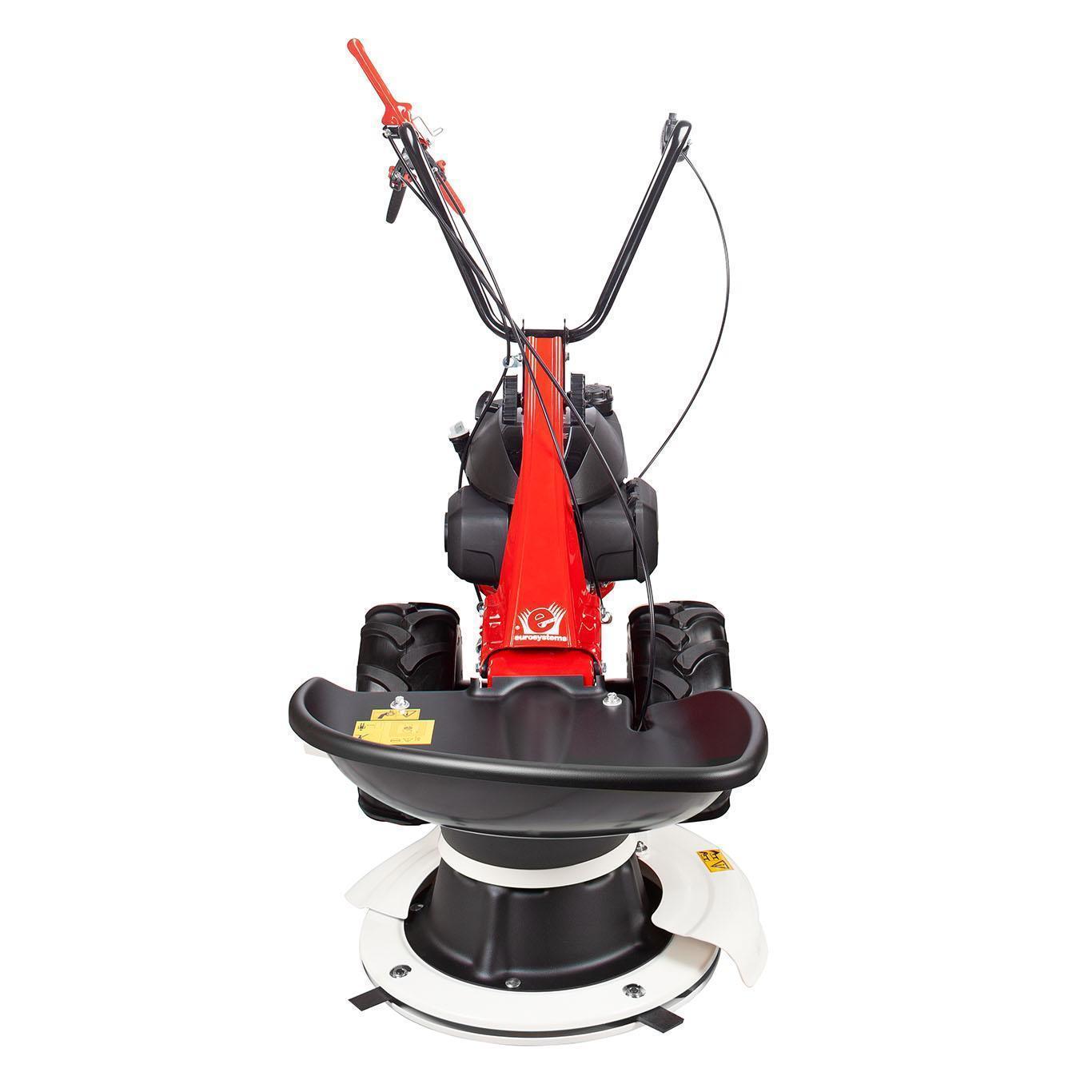

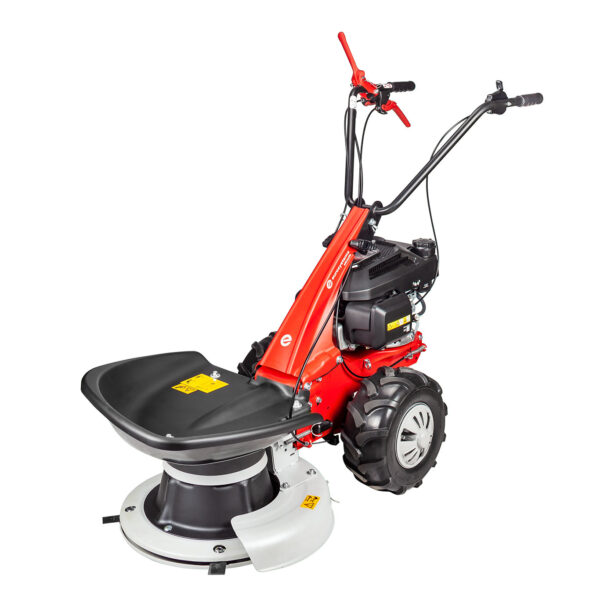

Working-tool developed and built for haymaking and grass-cleaning, even on surfaces not perfectly cleaned and levelled; this working system is often used in agriculture and thanks to its retractable blades, is less prone to breakages needing also lower maintenance
4 steel double cutting edge retractable knives
Working width 57 cm
| Operation: | 4 steel double-blade pivoting knives
*not suitable with engine B&S450 |
| Frame : | sheet metal, upper plastic deflector |
| Working width : | 57 cm |
| Adjustments: | altezza di taglio fissa 3,2 cm |
| RPM: | 2150-2250 |
| Transport wheels: | – |
| Other: | ratchet kit (not included): side strip with cloth |
| Recommended use: | up to 3.000 m² |
| Net weight: | 25 Kg |
| Dimensions : | 64x76x45(h) cm |

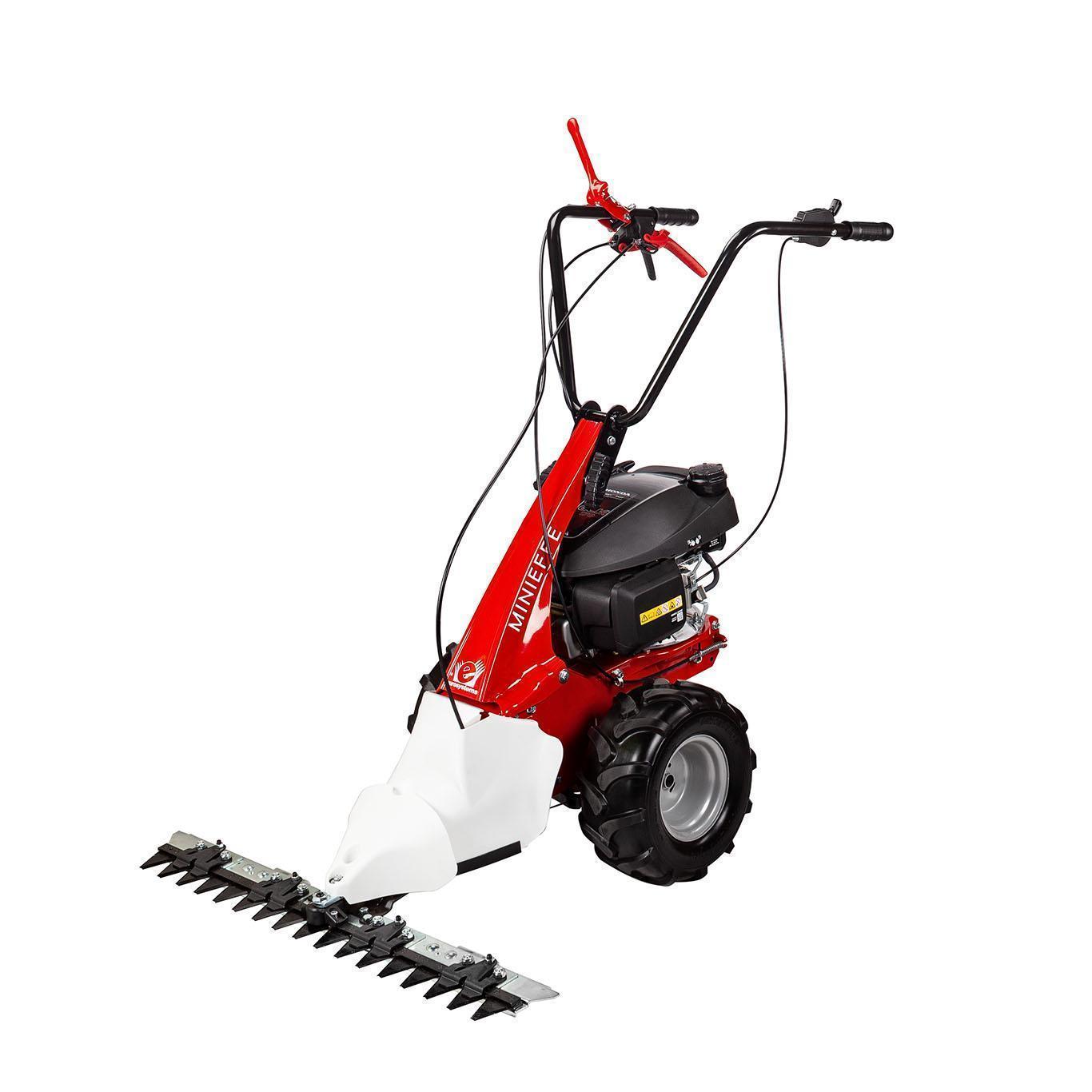

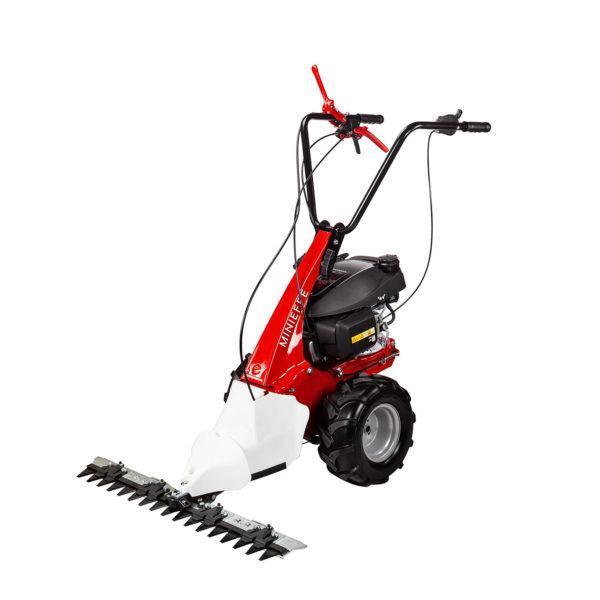

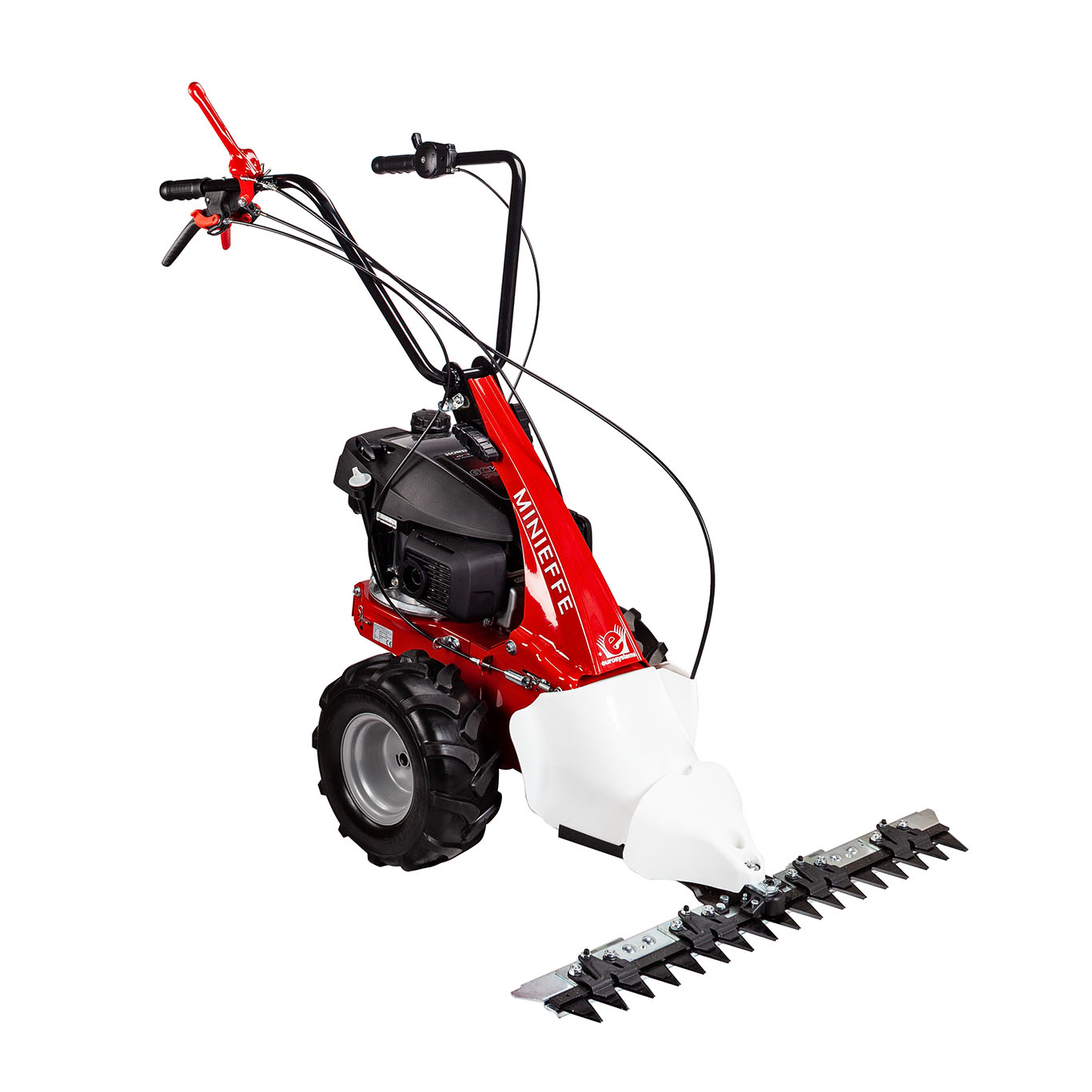

The Minieffe cutting bar is mainly designed for haymaking operations. Its working width and the patented bar movement allows to work efficiently and fast, suitable for clean and levelled terrains.
Patented blade movement, head with greasing nipple and connecting rod with bearings for a longer life and lower maintenance.
Double floating patented deflector for a bettere cutted-grass management.
| Operation: | blade-working movement: mono-blade |
| Frame : | sheet metal, upper plastic deflector |
| Working width : | 87 cm |
| Adjustments: | 2,0 cm cutting height |
| Beat/minute: |
800-900 |
| Transport wheels: | – |
| Other: | Eurosystems patents: – mono-blade movement, self-greasing head – double floating grass deflector |
| Recommended use: | up to 5.000 sm |
| Net weight: | 13,5 Kg |
| Dimensions : | 93x53x30(h) cm |

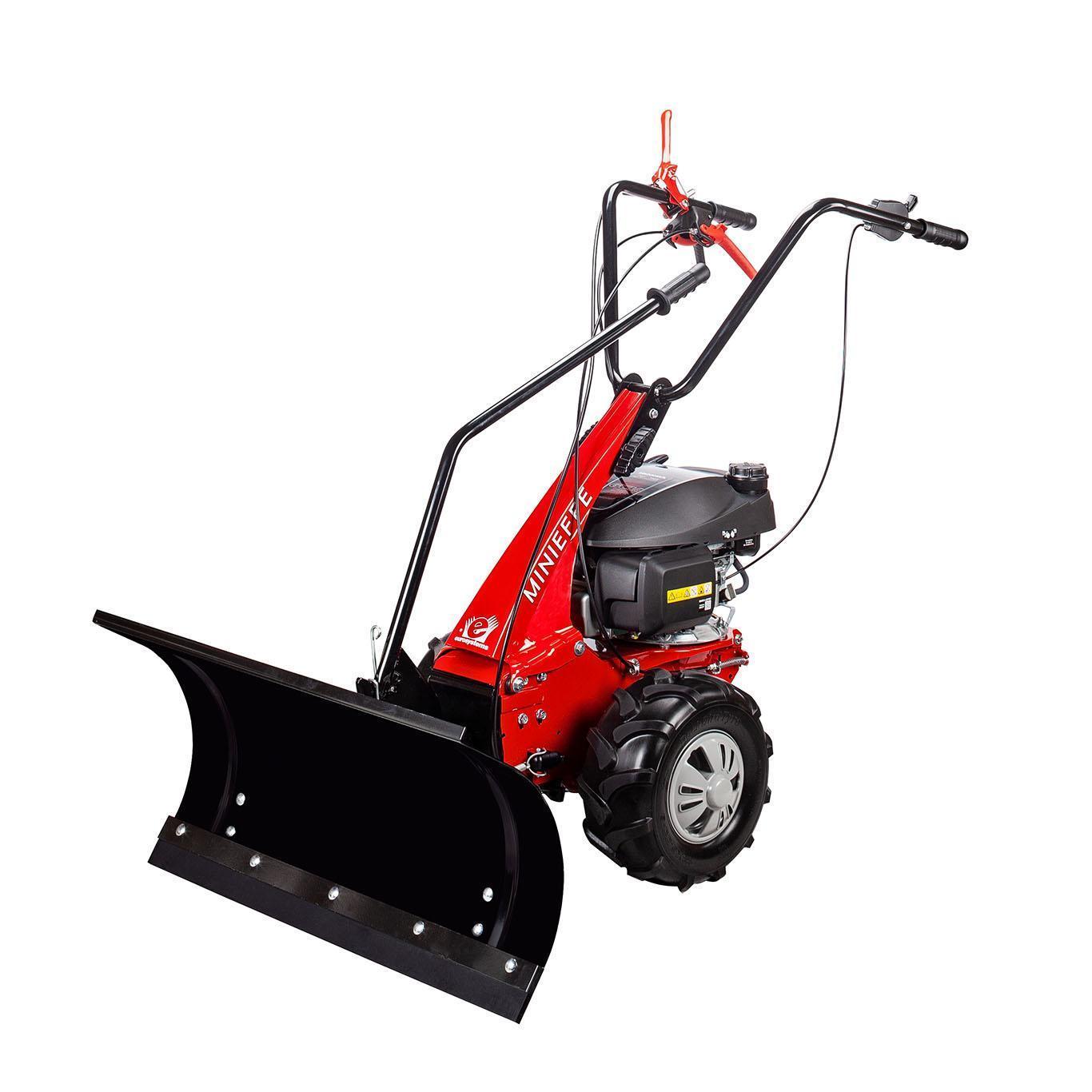

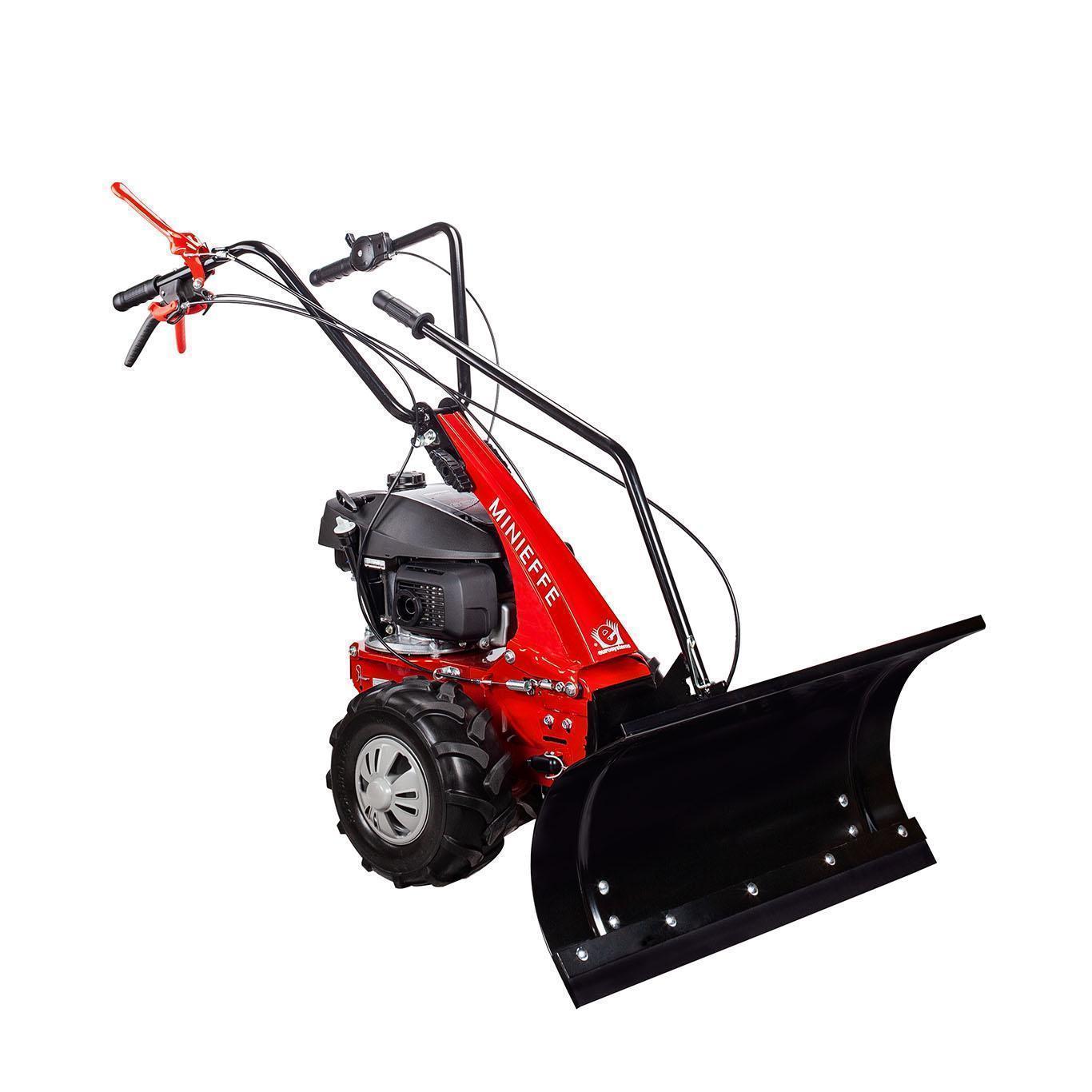

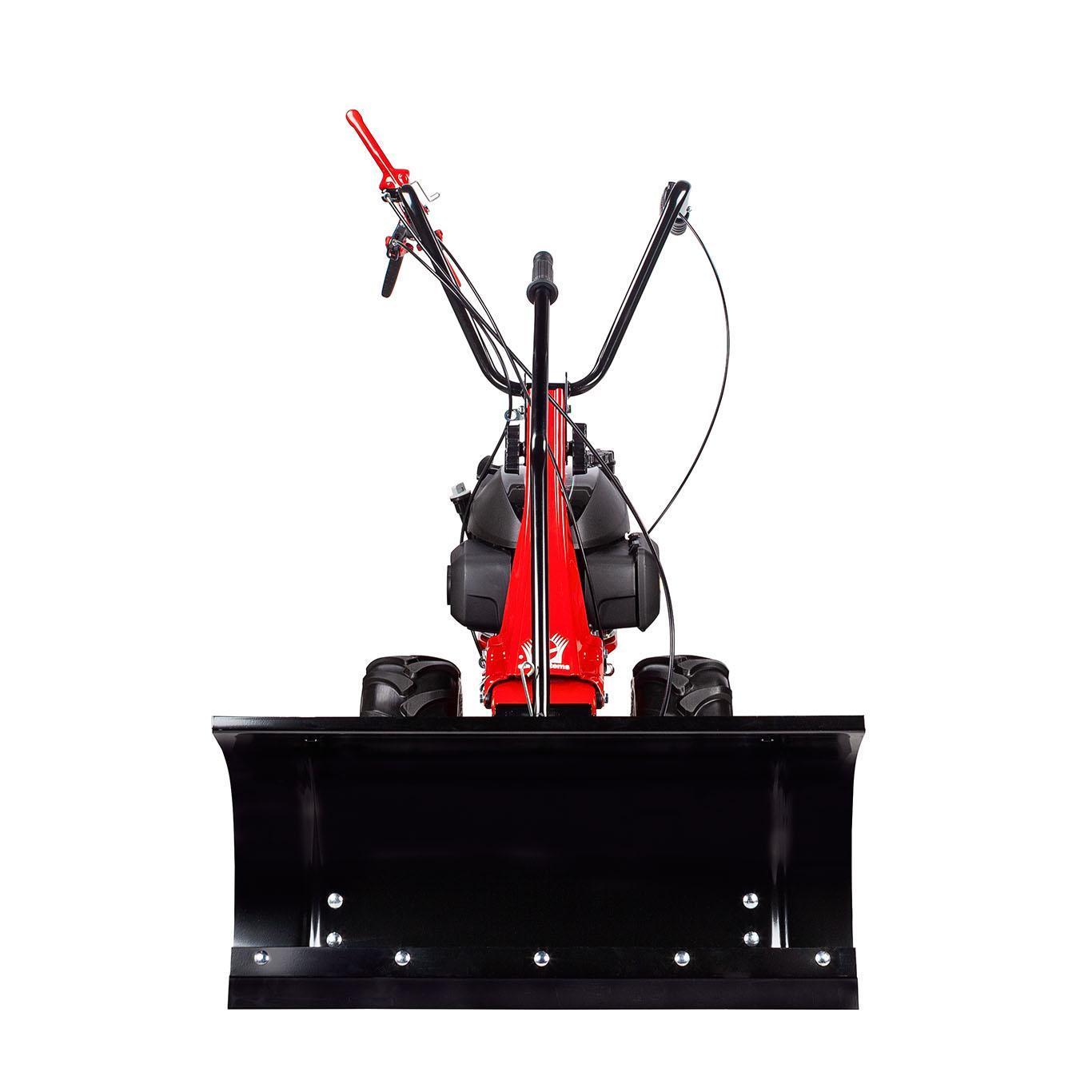

The Eurosystems horizontal shovel is designed to clean external floors from snow and different residues, the lower rubber band and the lateral adjustments allow an easy and efficient use.
Front shovel adjustable by side in 3 positions ± 30 ° through the leverage manageable from the driving position.
Lower rubber impact guard for a smoother driving
| Operation: | front blade with quick connection system |
| Frame : | sheet metal |
| Working width : | 85 cm |
| Adjustments: | by side, ± 30° |
| RPM: | – |
| Transport wheels: | – |
| Other: | anti-choc rubber band |
| Net weight: | 18 Kg |
| Dimensions : | 85x93x96(h) cm |

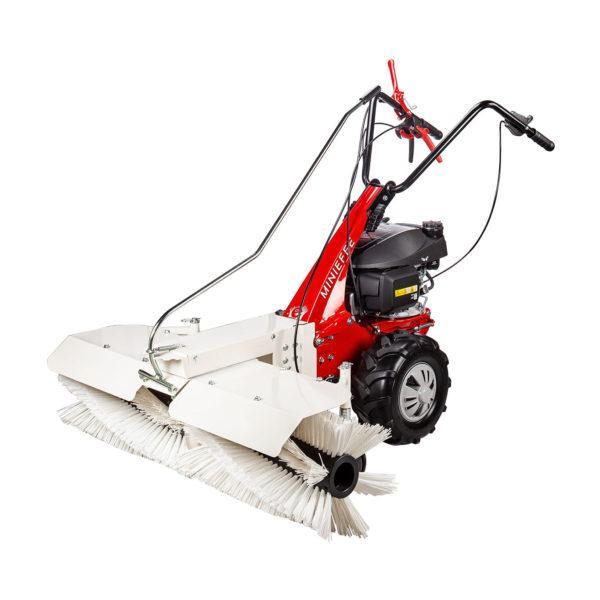

Tool developed for cleaning outdoor surfaces. The helicoidal brush allows a good clean even on surfaces not perfectly levelled
Polypropylene-made, helical front brush, dimensions 105 x Ø30 cm, laterally adjustable in 5 positions to ± 30°.
| Operation: | helical PP brush Ø30 cm with horizontal axle |
| Frame : | sheet metal |
| Working width : | 105 cm |
| Adjustments: | in height through rear wheels, by side ± 30° |
| RPM: | 64 |
| Transport wheels: | two full rear pivoting wheels |
| Other: | – |
| Net weight: | 36 Kg |
| Dimensions : | 105x86x100(h) cm |

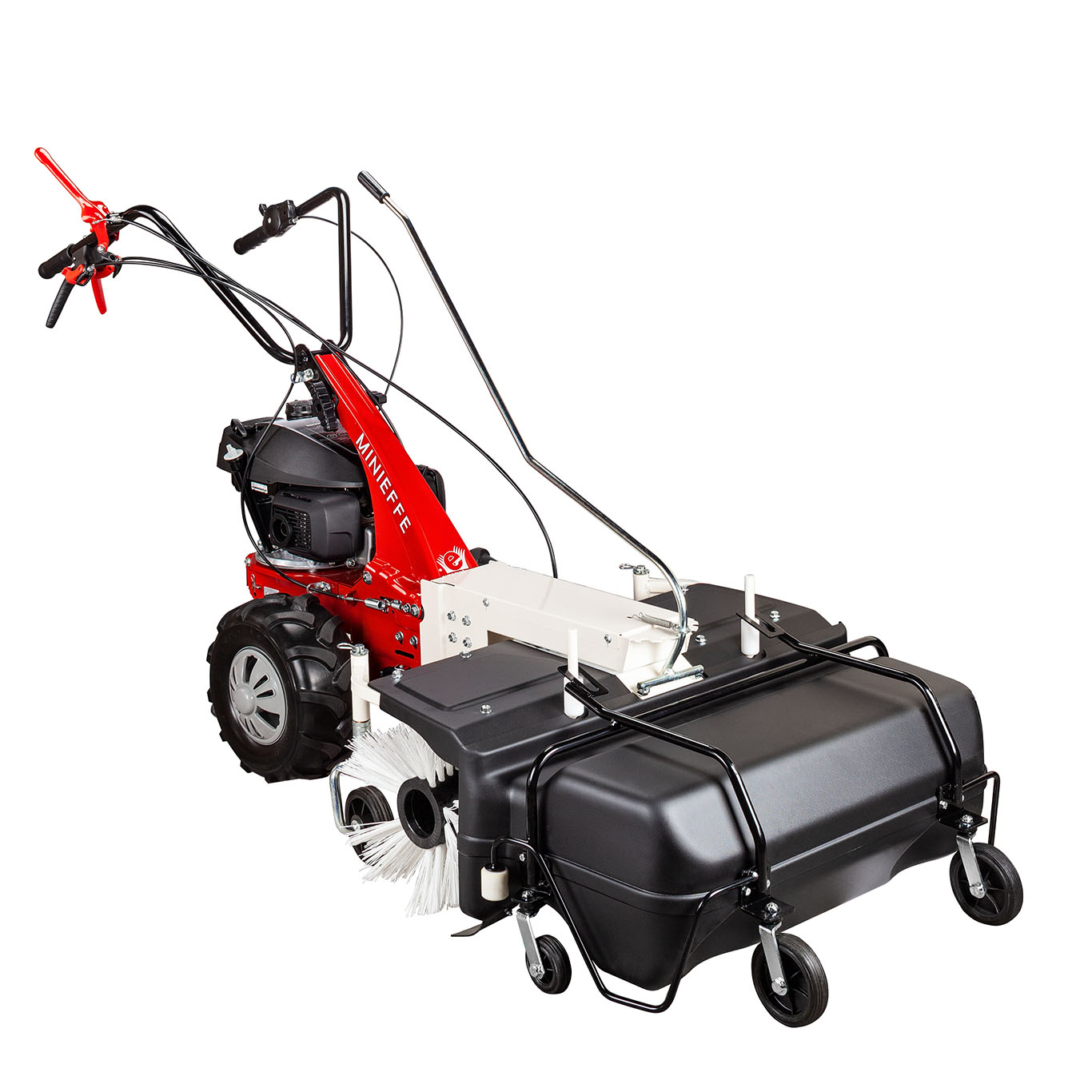

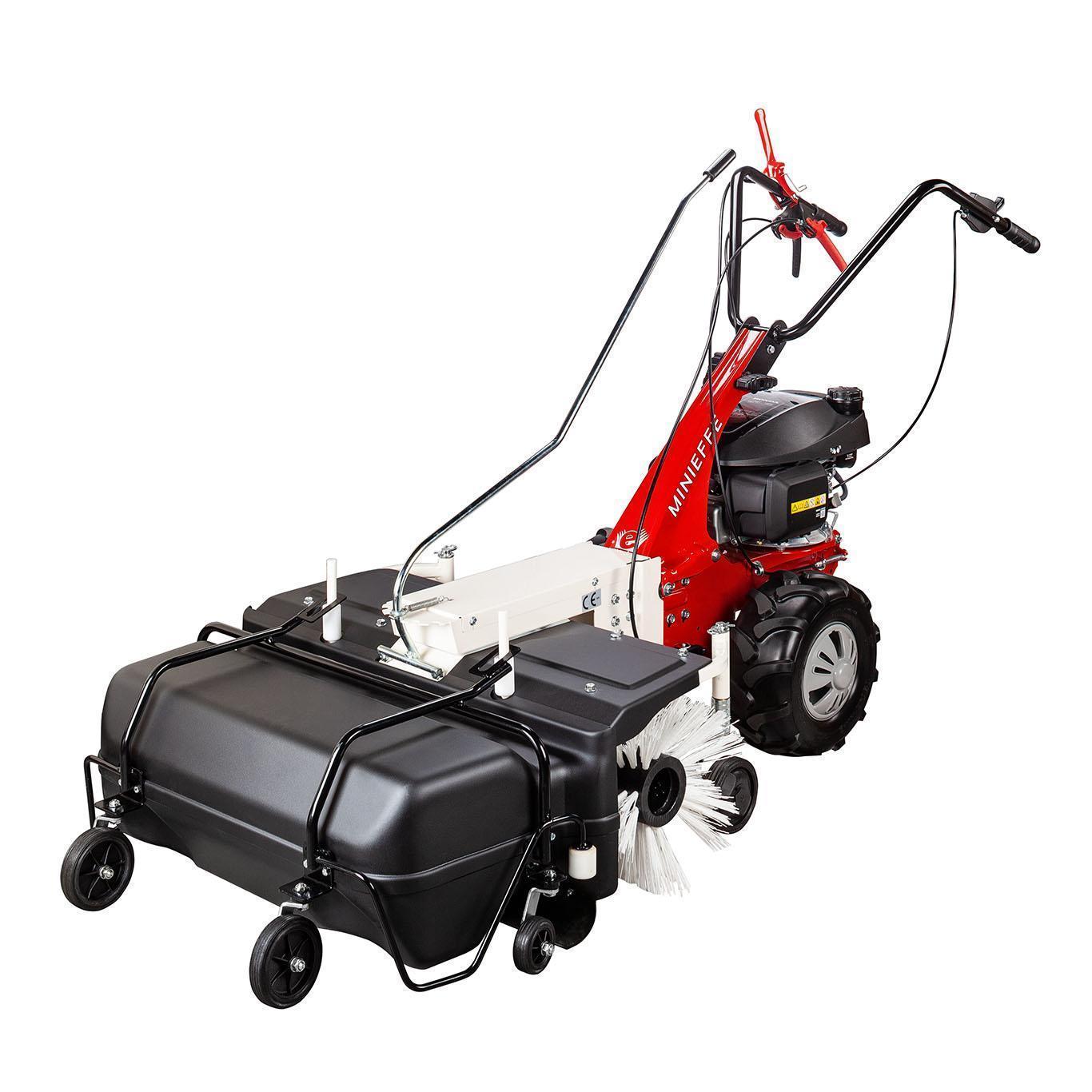

Tool suitable for cleaning outdoor floors and collecting / discharging residues of various kinds. The front ABS plastic bag allows optimal surface-cleaning and an easy unload of the collected material.
Polypropylene-made, helical front brush, dimensions 88 x Ø30 cm, laterally adjustable in 5 positions to ± 30°
Frontal, single ABS collector with 2 solid pivoting wheels.
| Operation: | helical PP brush Ø30 cm with horizontal axle with double front ABS collector |
| Frame : | sheet metal, plastic collector |
| Working width : | 88 cm |
| Adjustments: | in height through rear wheels, by side ± 30° |
| RPM: | 161 |
| Transport wheels: | two full rear and two full front pivoting wheels |
| Other: | removable binder with handle |
| Net weight: | 40 Kg |
| Dimensions : | 87x128x101(h) cm |
Optionals
 |
SNOW CHAINS FSDescription: iron snow chains for narrow wheels Dimensions: 13×5,00-5″ |
 |
SNOW CHAINS FS+RDescription: iron snow chains for wide wheels Dimensions: 13×6,00-6″ |
 |
RAKE KITDescription: flap with side cloth for swath preparation Use: accessory for rotating scythe |
MANUALS
- Operating instructions Minieffe 502 – (latest version 2020)
- Operating instructions Minieffe V20 – (latest version 2022)
- Spare parts list Front Brush Minieffe – (latest version 2023)
- Spare parts list Minieffe 502 – (latest version 2020)
- Spare parts list Minieffe V20 – (latest version 2022)
- Spare parts list Cutting bar 87 cm– (latest version 2023)
- Operating instructions Cutting bar – (latest version 2021)
- Spare parts list Rotary scythe AFA57 – (latest version 2023)
- Mower user manual – (latest version 2021)
- Spare parts list and Operating Instructions Minieffe Brush with collector – (latest version 2019)
- Spare parts list Minieffe Snow blade – (latest version 2022)
- Operating instructions Minieffe Snow blade – (latest version 2022)
- Minieffe V23 – REV.03 – (latest version 2023)
- Exploded view of mower – (latest version 2023)
- Exploded view of corded brush cutter – (latest version 2024)
