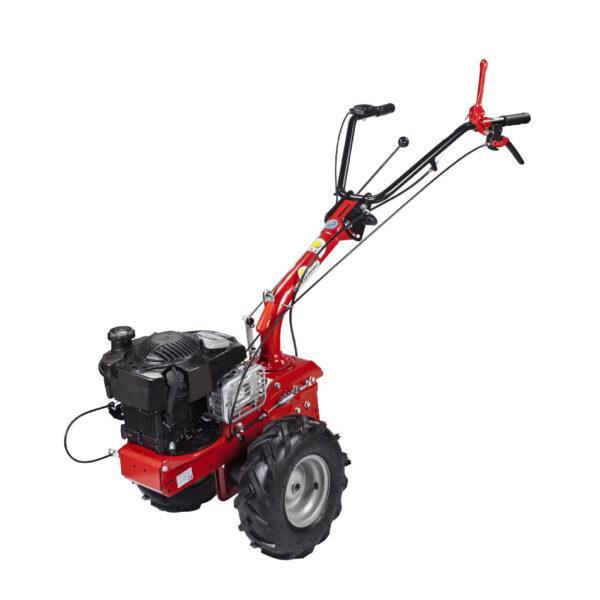

P55 EVO
Historic model of the Eurosystems range, P55 has redefined the concept of multi-tool machine for hobby use. The unit is sturdy and easy to use, it has a wide range of 14 different tools for the gardens/green areas care, for the vegetable gardens jobs, for spraying, transporting and cleaning outdoor floors.
– 14 tools
– 5 engines models
– recommended use: hobby
DOWNLOAD
TECHNICAL SHEET- Technical features
- Engines
- Tools
- Optionals
- MANUALS
Technical features
| Trasmission |
gears and endless screw in oil bath and belts |
|---|---|
| Gearbox |
1+1 |
| Speeds |
rear tool: FS 1,3 Km/h – R 2,5 Km/hfront tool: FS 2,5 Km/h – R 1,3 Km/h |
| Handlebar |
adjustable in height and by side, reversible |
| Driving levers |
ergonomic with built-in safety system |
| Power take off |
vertical with belt; connection system semi-rapid |
| Tools |
14 |
| Driving wheels |
Tractor, 13×5.00-6" with mechanical semi-differential |
| Weight |
41-44 kg, |
| Dimensions |
55x112x105(h) cm |
Engines
|
|
B&S 675 EXI-SERIESPower supply: gasoline Starting systems: recoil Displacement: 163 cc Power: 2.74 kw Fuel tank: 1.0 liters |
 |
B&S 675 iSi SERIESPower supply: gasoline Starting systems: electric Displacement: 163 cc Power: 2.74 kw Fuel tank: 1.0 liters |
 |
HONDA GCV170Power supply: gasoline Starting systems: recoil Displacement: 166 cc Power: 3.6 kw Fuel tank: 0,9 litres |
 |
EURO RV200Power supply: gasoline Starting systems: recoil Displacement: 200 cc Power: 3,5 kw Fuel tank: 1 liters |
 |
EURO 196 OHVPower supply: gasoline Starting systems: recoil Displacement: 196 cc Power: 3.8 kw Tank: 0,9 liters |
Attrezzi
Working tool suitable for cleaning uncultivated areas and small wooded terrains, the grassland mower P55 CLASSIC is simple and robust, it allows to manage brambles, small shrubs and grass tall up to 60-100 cm. Its 53 cm working width allows to manage areas up to 2.500 sqm.
Vertical axle, steel-made single blade with double cutting edge Working width 53 cm
Sheet metal side adjustable skids with front shockproof and protecting curtain. Through the lateral skids the cutting height can be adjusted to 5, 8 or 10,5 cm.
| Operation: | single rotor, single-blade |
| Frame : | sheet metal |
| Working width : | 53 cm |
| Adjustments: | height adjustable 5, 8 and 10,5 cm, fix positions |
| RPM: | 2200-2300 |
| Transport wheels: | – |
| Other: | sheet metal side skids front security curtain |
| Recommended use: | up to 2.500 sqm |
| Net weight: | 22 Kg |
| Dimensions : | 61,5x95x35(h) cm |
The PRO mower has two additional features: a rotor with four floating knives installed, on the ends of the cutting bar; and the an all-new cutting height adjustment system located on the handlebar.
The first feature allows you to work with even more efficiency, easily tackling tall grass, thick brambles, along with wild grasses and scrub.
The second feature is useful for when you need to quickly change the height-of-cut – perhaps to meet the needs of different mowing conditions or terrain. (to avoid the damage of the blade and the turf)
| Operation: | rotor with four floating knives |
| Frame : | sheet metal |
| Working width : | 53 cm |
| Adjustments: | height adjustable 5, 8 and 10,5 cm |
| RPM: | 2200-2300 |
| Transport wheels: | – |
| Other: | cutting height adjustment system on the handlebar front security curtain |
| Recommended use: | up to 2.500 sqm |
| Net weight: | 23,5 Kg |
| Dimensions : | 96×61,5×35(h) cm |
Extremely versatile equipment for grass cutting in every context and for edges, flower beds and sidewalks trimming.
The patented transmission allows the lateral movement of the utensil arm in 4 positions, while the cutting platform can be rotated of 6 degrees. This allows to perfectly clean every corner.
The exclusive and patented wire extension control, placed directly on the handlebar, contributes to make the work quick and convenient.
| Operation: | self-winding cutting head flush |
| Tools: | Ø3mm wire, wire capacity in the seat about 7,5 meters |
| Working width : | 60 cm |
| Cutting height: | 20 and 40 mm |
| Adjustments: | lateral inclination of the plate in two positions: 0° and 6°
Cutting arm inclination in 4 positions: 0°, 15°, 30° and 45° |
| Transport wheels: | – |
| Other: | manual handlebar control for extending the head thread
support cup with idle rotation bearing Sheet-metal protective bulkheads Wire-cutter knife |
| Net weight: | 20 Kg |
| Dimensions : | 88x62x41(h) cm |
Working-tool developed and built for haymaking and grass-cleaning, even on surfaces not perfectly cleaned and levelled; this working system is often used in agriculture and thanks to its retractable blades, is less prone to breakages needing also lower maintenance
4 steel double cutting edge retractable knives
Working width 57 cm
| Operation: | 4 steel double-blade pivoting knives |
| Frame : | sheet metal, upper plastic deflector |
| Working width : | 57 cm |
| Adjustments: | fixed cutting height 3,2 cm |
| RPM: | 2150-2250 |
| Transport wheels: | – |
| Other: | ratchet kit (not included): side strip with cloth |
| Recommended use: | up to 3.000 m² |
| Net weight: | 25 Kg |
| Dimensions : | 64x76x45(h) cm |
The P55 bilama is a working tool extremely performing. The double blade movement, which replicates professional systems, permits to obtain a clean cut and fully exploits the potential of the engine.
Double blade cutting movement, both blades (the lower and the upper one) floats horizontally allowing a clean and perfect cut
Single floating deflector, adjustable sheet metal skids to set the cutting height of the blades
| Operation: | blade-working movement: bilama |
| Frame : | sheet metal, upper plastic deflector |
| Working width : | 87 cm |
| Adjustments: | height adjustable through lateral skids, from 1,5 to 4,5 cm |
| Beat/minute: |
1300-1400 |
| Transport wheels: | – |
| Other: | adjustable skids |
| Recommended use: | up to 5.000 sm |
| Net weight: | 16 Kg |
| Dimensions : | 87x60x26(h) cm |
The P55 double-blade cutting bar with ESM blades is the best performing tool in its category: The double-blade movement, which replicates professional systems, combined with the top-of-the-range ESM blades allows you to obtain a clean cut without any burrs.
Double blade cutting movement, both blades (the lower and the upper one) floats horizontally allowing a clean and perfect cut
Single floating deflector, adjustable sheet metal skids to set the cutting height of the blades
| Operation: | blade-working movement: bilama ESM |
| Frame : | sheet metal, upper plastic deflector |
| Working width : | 87 cm |
| Adjustments: | height adjustable through lateral skids |
| Beat/minute: |
1300-1400 |
| Transport wheels: | – |
| Other: | adjustable skids, not included – see optionals |
| Recommended use: | up to 5.000 sm |
| Net weight: | 15 Kg |
| Dimensions : | 87x39x20(h) cm |
The Eurosystems horizontal shovel is designed to clean external floors from snow and different residues, the lower rubber band and the lateral adjustments allow an easy and efficient use.
Front shovel adjustable by side in 3 positions ± 30 ° through the leverage manageable from the driving position.
Lower rubber impact guard for a smoother driving
| Operation: | front blade with quick connection system |
| Frame : | sheet metal |
| Working width : | 85 cm |
| Adjustments: | by side, ± 30° |
| RPM: | – |
| Transport wheels: | – |
| Other: | anti-choc rubber band |
| Net weight: | 18 Kg |
| Dimensions : | 85x93x96(h) cm |
Tool developed for cleaning outdoor surfaces. The helicoidal brush allows a good clean even on surfaces not perfectly levelled
Polypropylene-made, helical front brush, dimensions 105 x Ø30 cm, laterally adjustable in 5 positions to ± 30°.
| Operation: | helical PP brush Ø30 cm with horizontal axle |
| Frame : | sheet metal |
| Working width : | 105 cm |
| Adjustments: | in height through rear wheels, by side ± 30° |
| RPM: | 64 |
| Transport wheels: | two full rear pivoting wheels |
| Other: | – |
| Net weight: | 36 Kg |
| Dimensions : | 105x86x100(h) cm |
Tool suitable for cleaning outdoor floors and collecting / discharging residues of various kinds. The front ABS plastic bag allows optimal surface-cleaning and an easy unload of the collected material.
Polypropylene-made, helical front brush, dimensions 88 x Ø30 cm, laterally adjustable in 5 positions to ± 30°
Frontal, single ABS collector with 2 solid pivoting wheels.
| Operation: | helical PP brush Ø30 cm with horizontal axle with double front ABS collector |
| Frame : | sheet metal, plastic collector |
| Working width : | 88 cm |
| Adjustments: | in height through rear wheels, by side ± 30° |
| RPM: | 161 |
| Transport wheels: | two full rear and two full front pivoting wheels |
| Other: | removable binder with handle |
| Net weight: | 40 Kg |
| Dimensions : | 87x128x101(h) cm |
This accessory is a “must have” for the small horticulturist who uses P55 as a multi purpose machine: easy to connect, the rear cutters are designed to quickly prepares the seedbed even on hard soil
Sheet metal protecting casing with adjustable spur to easily set the working depth of the rotavator
Cutter 50 x Ø26 cm with 16 steel blades on horizontal axle
| Operation: | rear connection, 4 stars, 16 steel blades |
| Frame : | sheet metal |
| Working width : | 50 cm |
| Adjustments: | in height through rear spur 0-6,5 cm |
| RPM: | 238 |
| Transport wheels: | – |
| Recommended use: | up to 600 sqm |
| Other: | adjustable spur |
| Net weight: | 19 Kg |
| Dimensions : | 48x56x61((h) cm |
This accessory is a “must have” for the small horticulturist who uses P55 as a multi purpose machine: easy to connect, the rear cutters are designed to quickly prepares the seedbed even on hard soil
Working system with springs on horizontal axle
Two rear lateral full wheels
| Operation: | working system with 96 springs |
| Frame : | sheet metal |
| Working width : | 60 cm |
| Adjustments: | – |
| RPM: | 238 |
| Transport wheels: | two full fixed wheels 20×5 cm |
| Recommended use: | up to 1.500 sqm |
| Other: | – |
| Net weight: | 18 Kg |
| Dimensions : | 62x62x33(h) cm |
Sprayer with indipendent tank and lance with pressure atmoizer, ideal for misting and treating vegetable gardens, small vineyards and orchards, for sanifications and cleaning operations. Usable with liquid soaps, alcoholics, fertilizers, pesticides, cryoform and others.
Independent tank with filtering system, maximum capacity 50 litres. 10 litres hand-wash separated tank with tap
Sprayer lance with pressure atomizer (max. 4,1 bar); max. output 7,7 litres per minute
Front fan-shaped ground sprinkler, adjustable through the nozzle
| Operation: | pump 12 V, 4.1 bar, batteries x2, 12 V – 5 Ah, tank 50 litres |
| Frame : | sheet metal, plastic tank |
| Working width : | – |
| Liquidi compatibili: | water, liquid soaps, fertilizers/pesticides, cryo-form etc. |
| RPM: | – |
| Transport wheels: | two frontal pivoting pneumatics 26×6″ |
| Other: | hand-wash tank 10 litres
pressure atomizer 9 m hose and support front fan-shaped ground sprinkler |
| Net weight: | 41 Kg |
| Dimensions : | 71x149x111(h) cm |
Developed for moving loads effortlessly, this application has two pneumatics pivoting wheels and a galvanized sheet metal tank that can be easly unloaded through a lever. Maximum capacity 75 kg – 85 lt.
Galvanized sheet tank with integrated drain system on the ground by using a lever, maximum tank capacity 85 lt.
Plastic accessory (not included) to increase the volumetric capacity of the tank to 140 liters.
| Operation: | construction tank, front discharge system, 75 kg – 85 lt. |
| Frame : | sheet metal, galvanized tank |
| Working width : | – |
| Adjustments: | – |
| RPM: | – |
| Transport wheels: | two frontal pivoting pneumatics Ø 20×6,5 cm. |
| Recommended use: | sand, lime, wood, not bulky material |
| Other: | optional (not included) to extend its capacity to 140 litres |
| Net weight: | 26 Kg |
| Dimensions : | 71x108x86(h) cm |
Designed for volumetric loads and/or loads that require a flat base, this accessory has a sheet metal platform and a 160-liter stackable square tank. Suitable for handling bulky loads or materials that require a flat support surface. Maximum capacity 75 kg.
LDPE plastic tank, maximum capacity 160 litres, to be set on the sheet metal platform
Sheet metal platform 88x155x10(h) cm
| Operation: | sheet metal platform equipped with stackable / foldable tank 160 lt |
| Frame : | sheet metal, plastic tank (LDPE) |
| Working width : | – |
| Adjustments: | – |
| RPM: | – |
| Transport wheels: | two frontal pivoting pneumatics 26×6″ |
| Recommended use: | leaves, pruning, bulky material in general, potted plants etc. |
| Other: | tiltable tank |
| Net weight: | 35 Kg |
| Dimensions : | 71x108x86(h) cm |
Sheet metal ridging plough with fixed wings, working width 29 cm, quick connection system
| Operation: | rear connection, fixe |
| Frame : | sheet metal |
| Working width : | 29 cm |
| Adjustments: | – |
| RPM: | – |
| Transport wheels: | – |
| Other: | – |
| Net weight: | 3,5 Kg |
| Dimensions : | 29x23x25(h) cm |
Optionals
 |
SNOW CHAINSDescription: iron snow chains for tractor wheels Dimensions: 13×5,00-5″ |
 |
TANK EXTENSIONDescription: tank extension with quick hooks, volumetric capacity 140 litres Use: optional for transport tank |
 |
RAKE KITDescription: flap with side cloth for swath preparation Use: accessory for rotating scythe |
|
ESM SKIDSDescription: sheet metal adjustable skids Use: optional for cutting barESM |
MANUALS
- Operating instructions – (latest version 2020)
- Spare parts list Brush – (latest version 2023)
- Instructions operating Scythe mower – (latest version 2021)
- All mower user manual – (latest version 2021)
- Transport tank user manual – (latest version 2021)
- Spare parts list and Operating instructions Flat tank – (latest version 2021)
- Scarifier user manual – (latest version 2020)
- Snow blade user manual – (latest version 2020)
- Exploded view P55 EVO – (latest version 2023)
- Exploded view of Grassland mower – (latest version 2023)
- Exploded view of AFA57 rotary scythe – (latest version 2023)
- Spare parts list Cutting bar 87 cm – (latest version 2023)
- Exploded view of P55 snow blade – (latest version 2023)
- Exploded view of p55 brush with collector – (latest version 2023)
- Exploded view of P55 rotavator – (latest version 2023)
- Exploded view of P55 de-tatcher– (latest version 2023)23)
- Exploded view Eco sprayer P55 – (latest version 2023)
- Exploded view of P55 transport tank – (latest version 2023)
- Exploded view of P55 riding plough– (latest version 2023)
- Exploded view of corded brush cutter – (latest version 2024)
