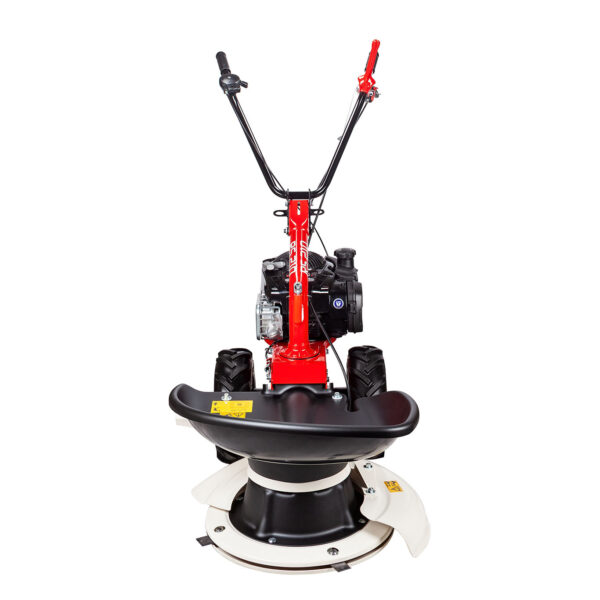

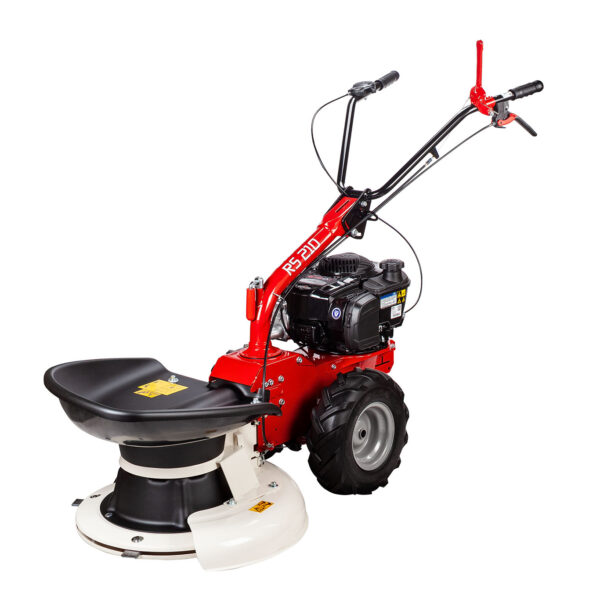

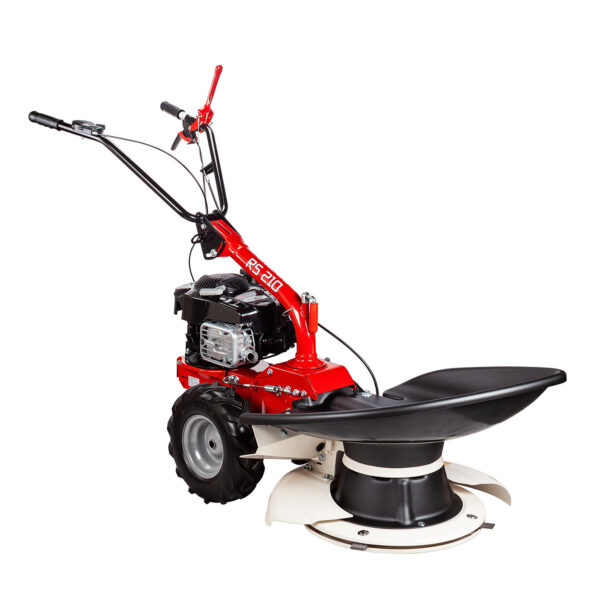

RS210
RS210 has a cutting width of 64 cm and a lateral adjustable handlebar, it is an extremely robust machine, easy to use and requires low maintenance. Thanks to its retracting knives, RS210 is less prone to breakage caused by unwanted impacts, allowing it to be used even on ground that is not perfectly clean and levelled.
Cutting movement: rotative, 4 blades
2 engines available
Recommended use: up to 4.000 m²
DOWNLOAD
TECHNICAL SHEET- Technical features
- Engines
- Optionals
- Manuals
Technical features
| Trasmission |
endless screw in oil bath and belt |
|---|---|
| Gear-speed |
MA, single forward gear |
| Speeds |
2,6 km/h |
| Handlebar |
adjustable in height and by side |
| Driving levers |
ergonomic with built-in safety system |
| Tool |
Rotating sickle |
| Movement |
rotary movement with shockproof blades |
| Cutting |
2100 rpmworking height (fix) 3,2 cmworking width 64 cm |
| Other |
upper conveyor in plastic |
| Driving wheels |
tractor, anti-puncture 13×5,00-6" |
| Weight |
65 Kg |
| Dimensions |
67x164x107(h) cm |
Engines
 |
B&S 675 EXi-SERIESPower supply: gasoline Starting systems: recoil Displacement: 163 cc Power: 2.74 kw Fuel tank: 1.0 liters |
 |
EURO 196 OHVPower supply: gasoline Starting systems: recoil Displacement: 196 cc Power: 3.8 kw Fuel tank: 0.9 liters |
Optionals
 |
SNOW CHAINSDescription: iron snow chains for standard wheels 13×5,00-6″ |
 |
SNOW BLADEOperation: front blade with quick coupling Frame: in sheet metal Working width: 85 cm Adjustments: lateral ± 30 ° Net weight: 18 Kg Dimensions: 85x93x96 (h) cm |
 |
RAKE KITDescription: side flap with hay-stop curtain |
Manuals
- Operating instructions RS210 – (latest version 2021)
- RS210 exploded view – (latest version 2023)
