RTT 2

RTT 3

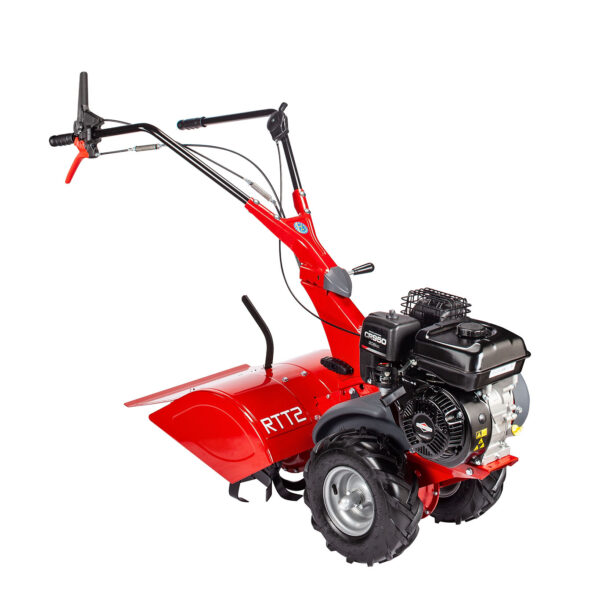

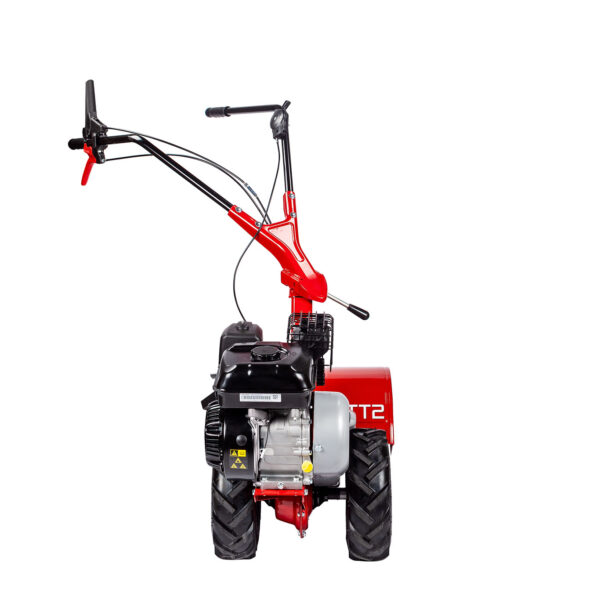

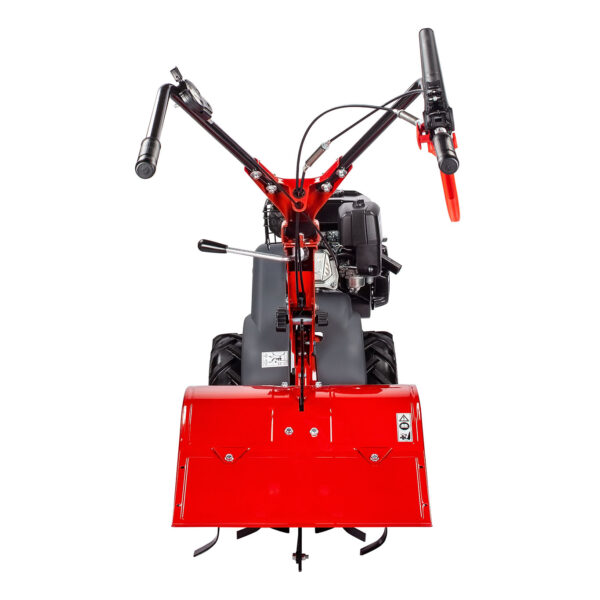

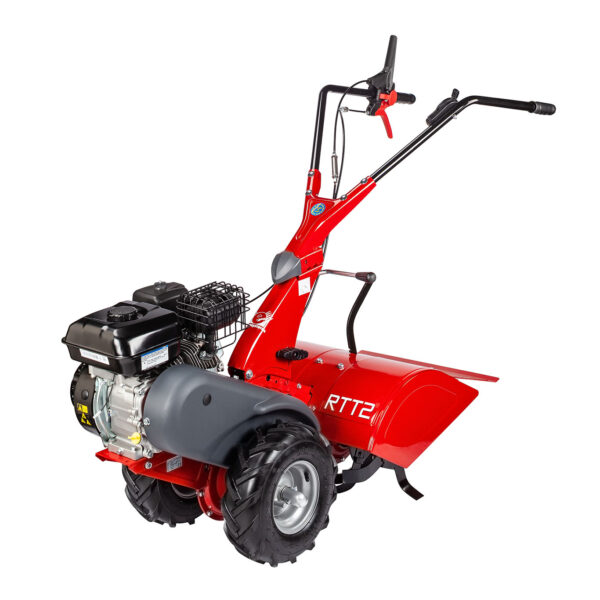

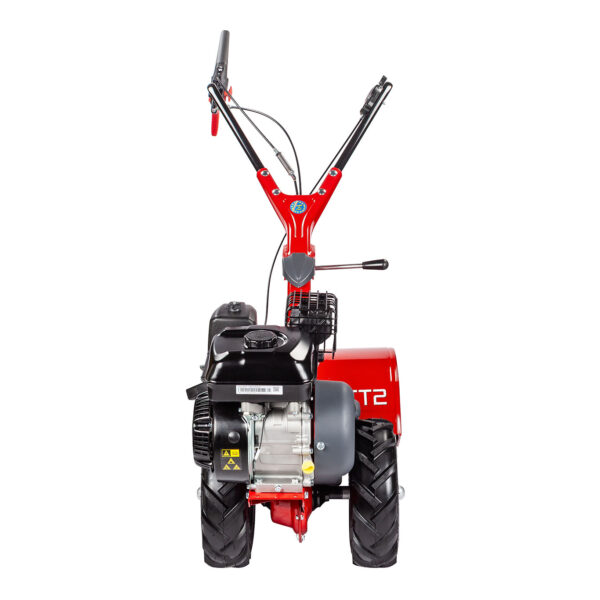

Robust and easy to handle RTT 2 is suitable for working light/medium-compacted soils which were not even previously plowed. The traction wheels with tractor and semi-differential profiles make driving simple and safe. This two-wheel tractor is ideal for finely shredding the soil and quickly preparing the seed bed by breaking the upper crust, i.e. reducing the earth to finely crushed, well-ventilated, soft and ready to grow soil.



4 engines available
Use: amateur
Recomended use: soft/medium soil, up to 600 sqm

SKU: 984 Category:

DOWNLOAD

TECHNICAL SHEET
  • Technical features
  • Engines
  • Optionals
  • MANUALS

Technical features

Trasmission

gears and chain in oil bath and belts
Gear-speed

FS + R, forward speed and reverse – rotavator rotation speed not variable
Speeds

FS: 1,1 Km/h
RS: 0,9 Km/h
Clutch

double belt system
Handlebar

adjustable in height and by side (B&S and Honda)
adjustable in height (7+1 positions) and by side (3), packable
Driving levers

handy with double built-in safety system
Tool

16 riveted steel knives
16 blades, working width 50 cm, working depth 32 cm
Speed rotation

270 rpm
Other

rear adjustable spur
sheet metal protective casing
Driving wheels

tractor tires 13×5,00-6" with unlocking device for neutral gear
Dimensions

53x151x109(h) cm

Engines

B&S CR950

Power supply: gasoline Starting systems: recoil

Displacement: 208 cc

Power: 3,96 kw

Fuel tank: 3,1 liters

HONDA GP160

Power supply: gasoline Starting systems: recoil

Displacement: 163 cc

Power: 3.6 kw

Fuel tank: 3,1 liters

EURO 182 OHV

Power supply: gasoline Starting systems: recoil

Displacement: 182 cc

Power: 3,1 kw

Fuel tank: 3,0 liters

EURO R210

Power supply: gasoline Starting systems: recoil

Displacement: 212 cc

Power: 4,2 kw

Fuel tank: 3,6 liters

Optionals

RIDGING PLOUGH

Description: fixed wings, quick connection

ROTOVATOR KIT 32

Description: rotavator shortening + iron wheels

dimensions: working width 32 cm, wheels Ø 35×5 cm

MANUALS
