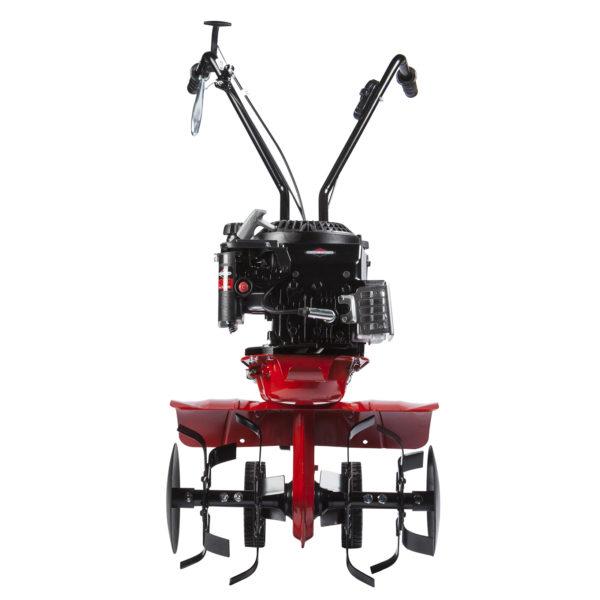

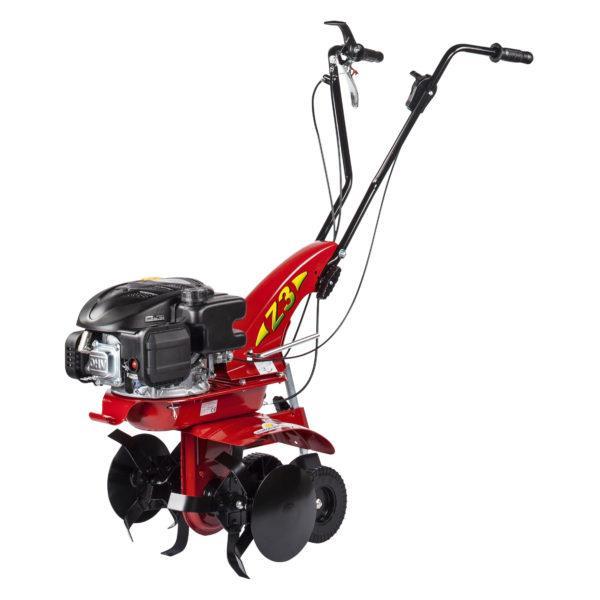

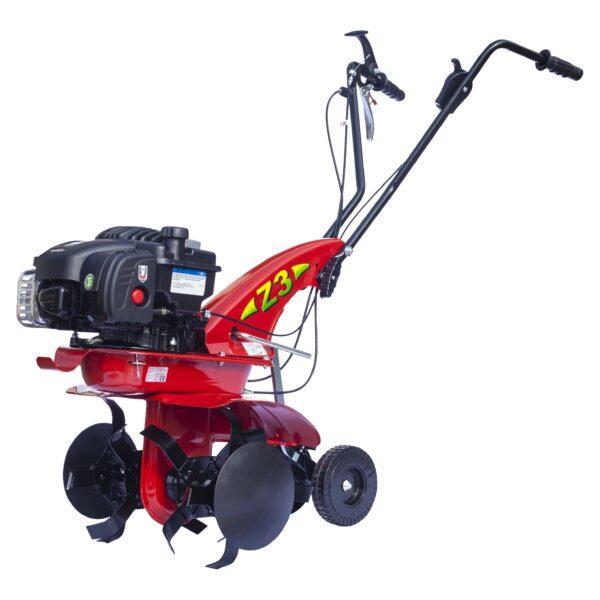

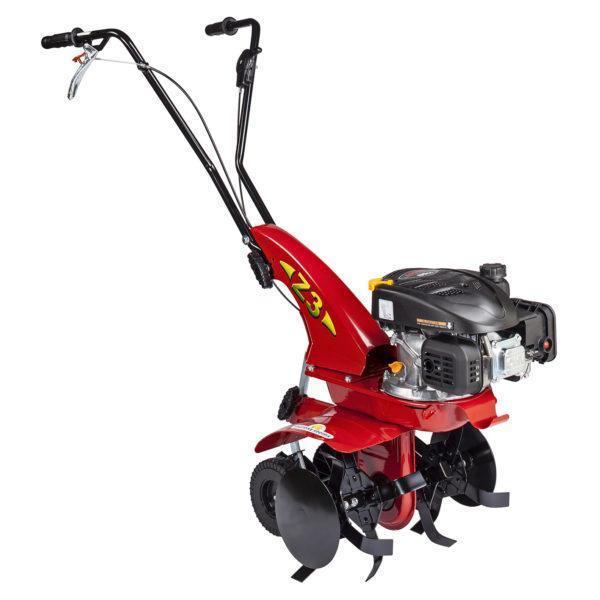

Z3

Tiller is showing an up-to-date design, Z3 is ideal for working in vegetable gardens, greenhouses or small gardens; the perfect power-to-weight ratio guarantees optimal soil penetration avoiding the phenomenon of hopping and making the operator’s work more efficient. Z3 is perfect for working on soft and medium-compact soils but manages to work efficiently even on never plowed soils. Ergonomic and easy to handle, thanks to the foldable handlebar it can be transported taking up very little space.



3 engines available
Use: amateur
Recommended use: medium soil, up to 250 square meters

SKU: 05 Category:

DOWNLOAD

TECHNICAL SHEET
  • Technical features
  • Engines
  • Optionals
  • MANUALS

Technical features

Trasmission

endless screw in oil bath and belt

Gear-speed

MA + (RM), optional milling and reverse gear

Speeds

Clutch

with belt

Handlebar

adjustable in height and by side

Driving levers

with built-in safety system

Tool

16 riveted steel knives
Ø32 x 50 cm

Speed rotation

130 rpm

Other

double rear wheel
rear spur
sheet metal protective casing
tree saver discs

Weight

39-41 Kg

Dimensions

50x137x111(h) cm

Engines

B&S 450 E-SERIES

Power supply: gasoline

Starting systems: recoil

Displacement: 125 cc

Power: 1.8 Kw

Fuel tank: 0.8 liters

EURO 139 OHV

Power supply: gasoline

Starting systems: recoil

Displacement: 139 cc

Power: 2,7 Kw

Fuel tank: 0.9 liters

EURO RV170S-Pro

Power supply: gasoline

Starting systems: recoil

Displacement: 170 cc

Power: 3,1 Kw

Fuel tank: 0.8 liters

Optionals

DE-THATCHER

Description: rotors with springs

Working width: 50 cm

CUTTER 75

Description: cutter extension to 75 cm

RIDGING PLOUGH

Description: fixed wings, quick connection

MANUALS
